Recliner Motor: Installation

NOTE: Ensure the rubber mount for the attachment bolt is seated properly.

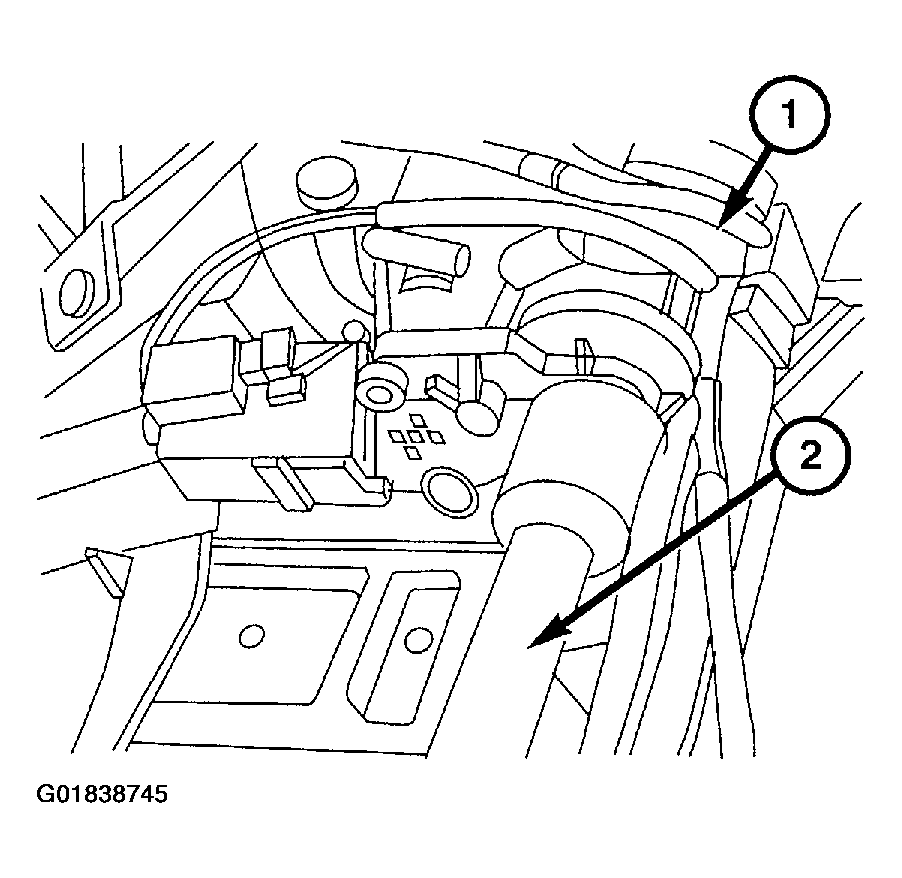

  1. Install the shaft (2) to the seat back frame (1) and install the snap ring.
    Fig 1: Installing Recliner Motor
    G01838745Courtesy of DAIMLERCHRYSLER CORP.
    2. NOTE: Ensure the harness is routed and secured in its original position to avoid potential interference with moving parts.
    Fig 2: Connecting Recliner Motor
    G01838746Courtesy of DAIMLERCHRYSLER CORP.

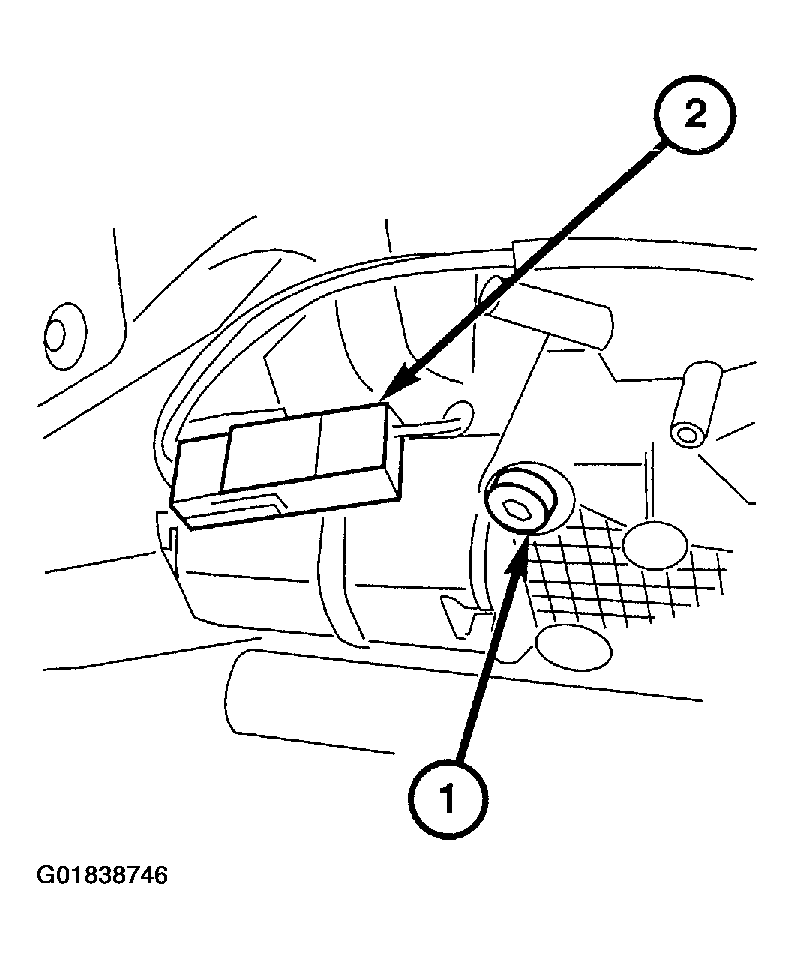

  2. Position the recliner motor to the seat back frame and install the attachment bolt (1). Connect the recliner motor harness connector (2).
  3. Install the seat back cover. See BODY article.
  4. Connect the negative battery cable.
