Center High Mounted Stop Lamp Connector End View
Center High Mounted Stop Lamp Connector End View

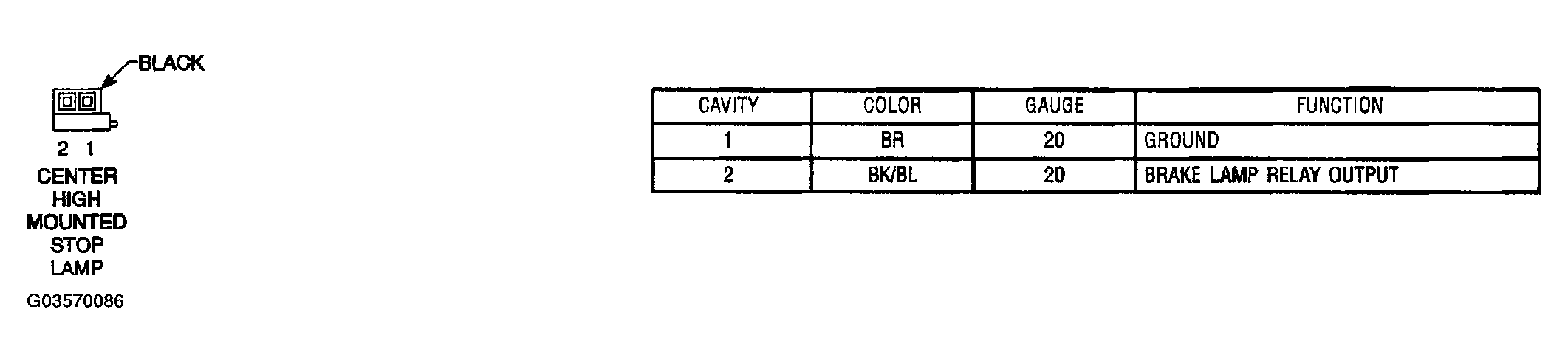

Fig 1: Center High Mounted Stop Lamp Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
