ESP Brake Pressure Sensor Connector End View (2)

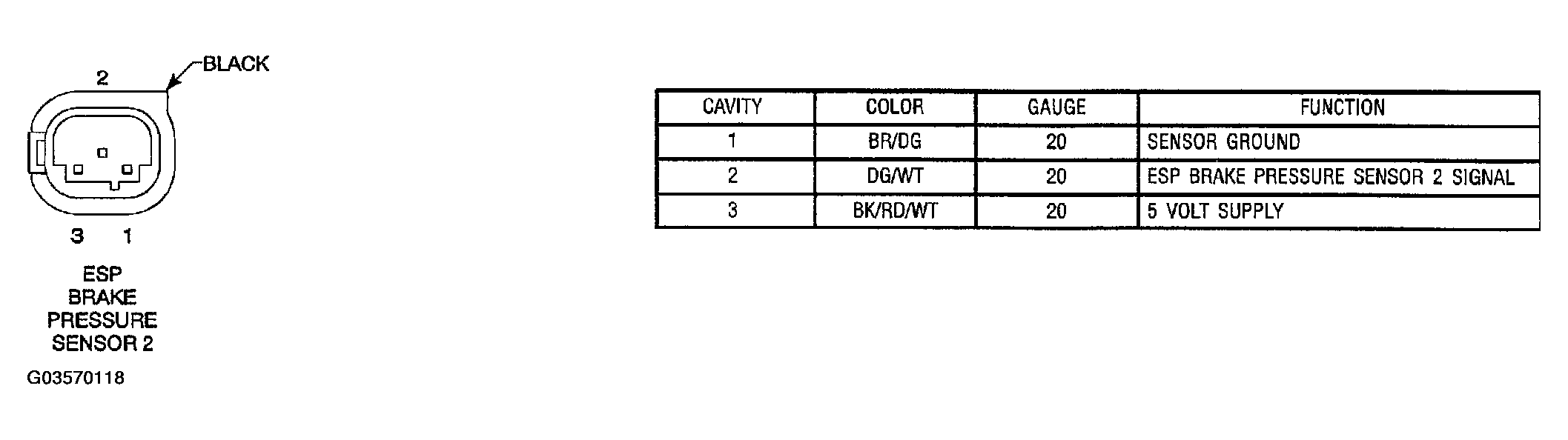

Fig 1: ESP Brake Pressure Sensor Connector End View (2)
G03570118Courtesy of DAIMLERCHRYSLER CORP.
