EVAP Purge Solenoid Connector End View

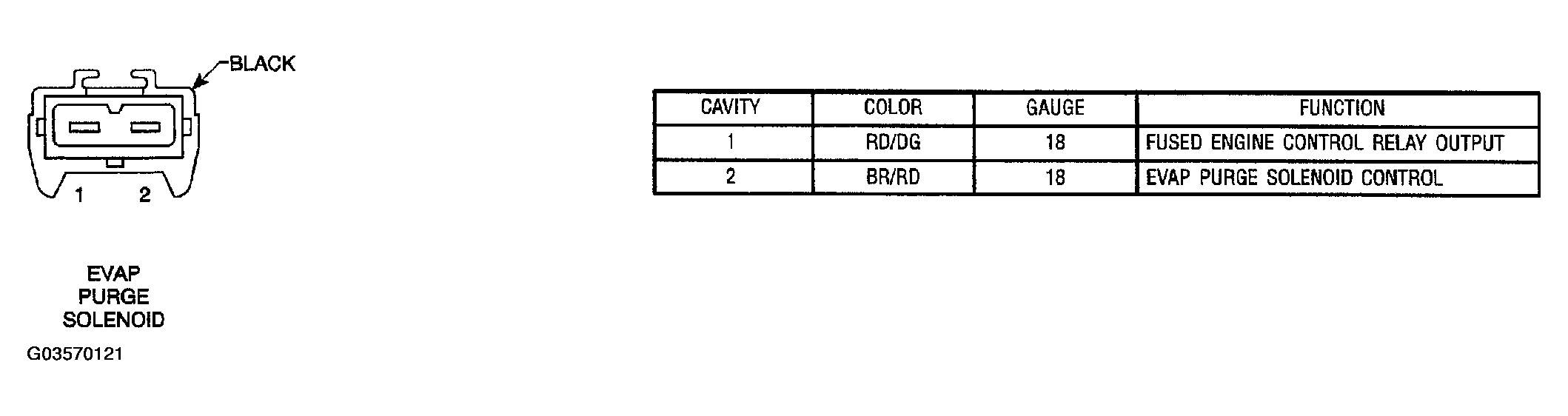

Fig 1: EVAP Purge Solenoid Connector End View
G03570121Courtesy of DAIMLERCHRYSLER CORP.
