Left Front Power Window Motor Connector End View

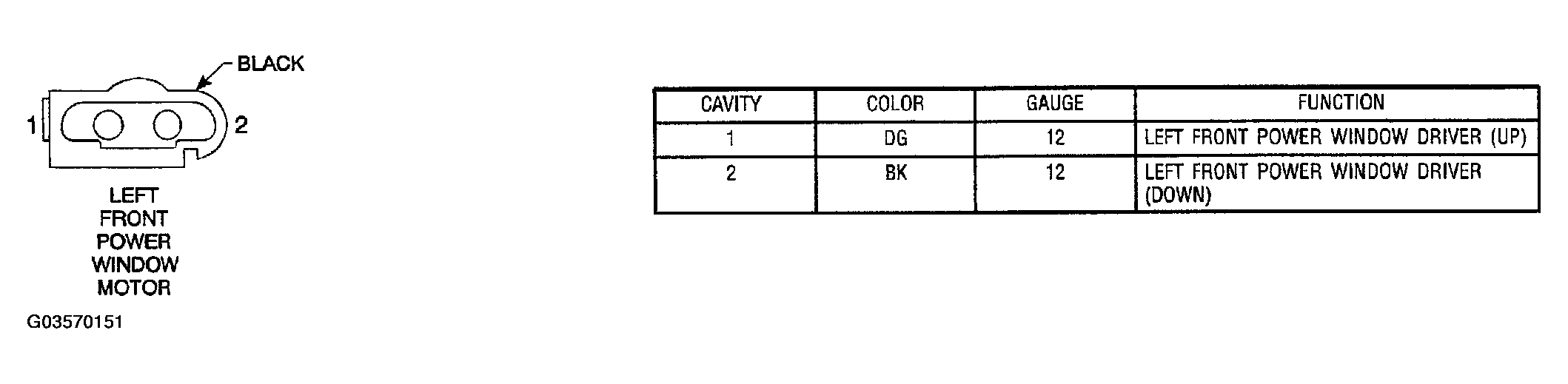

Fig 1: Left Front Power Window Motor Connector End View
G03570151Courtesy of DAIMLERCHRYSLER CORP.
