Left Rear Speaker Connector End View
Left Rear Speaker Connector End View

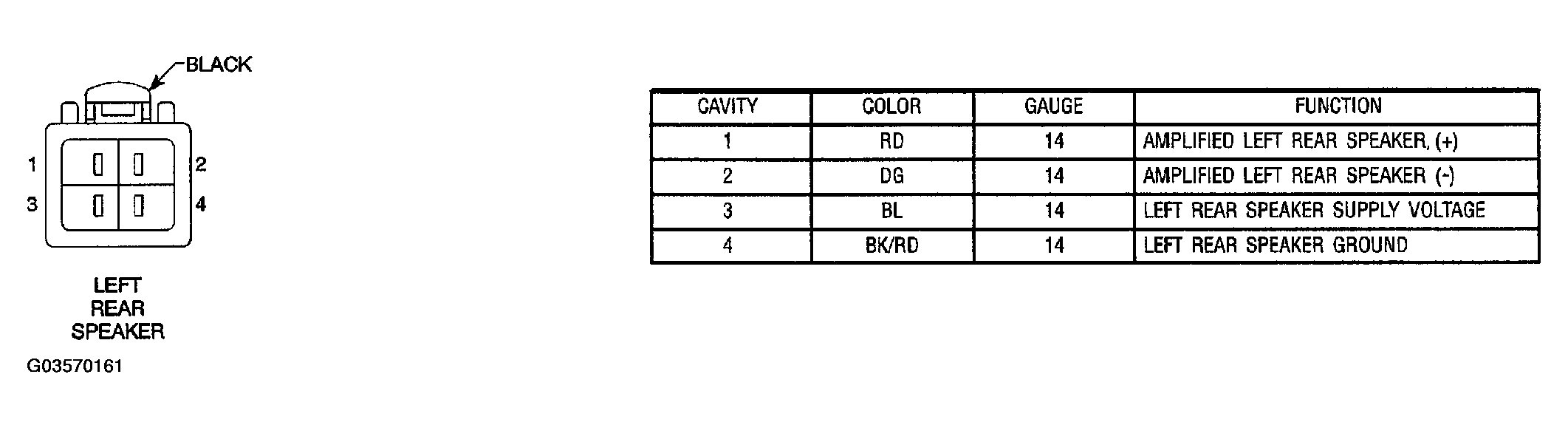

Fig 1: Left Rear Speaker Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
