Manifold Absolute Pressure Sensor Connector End View
Manifold Absolute Pressure Sensor Connector End View

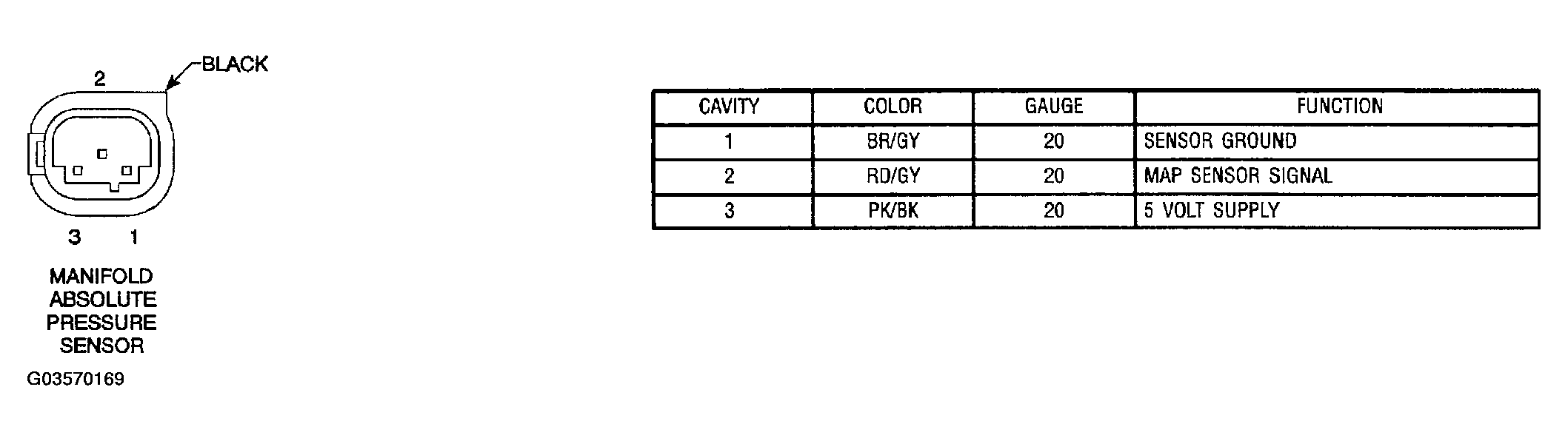

Fig 1: Manifold Absolute Pressure Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
