Relay Control Module Connector End View (C)

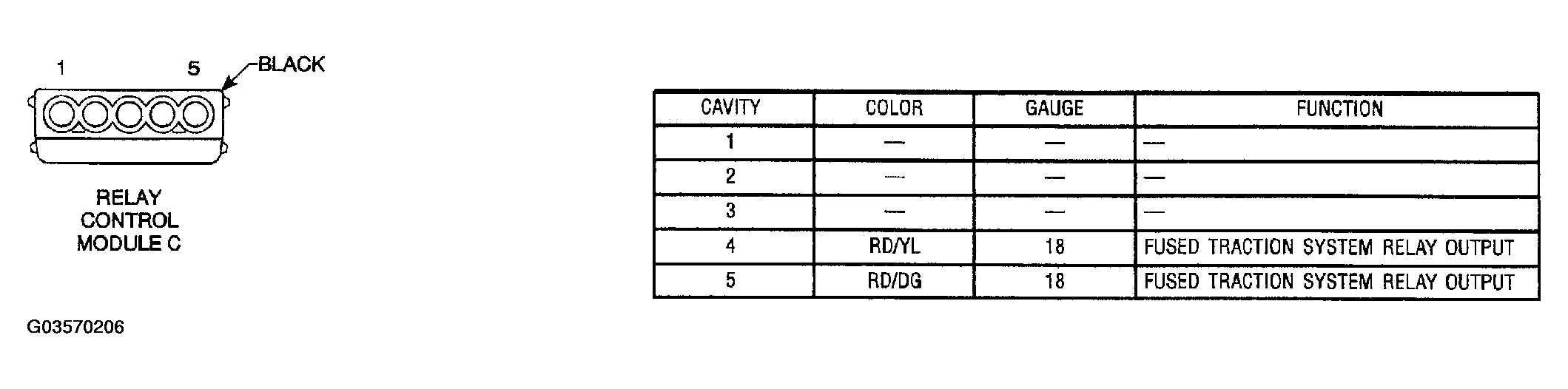

Fig 1: Relay Control Module Connector End View (C)
G03570206Courtesy of DAIMLERCHRYSLER CORP.
