A/C Heater Control Module Connector End View
A/C Heater Control Module Connector End View

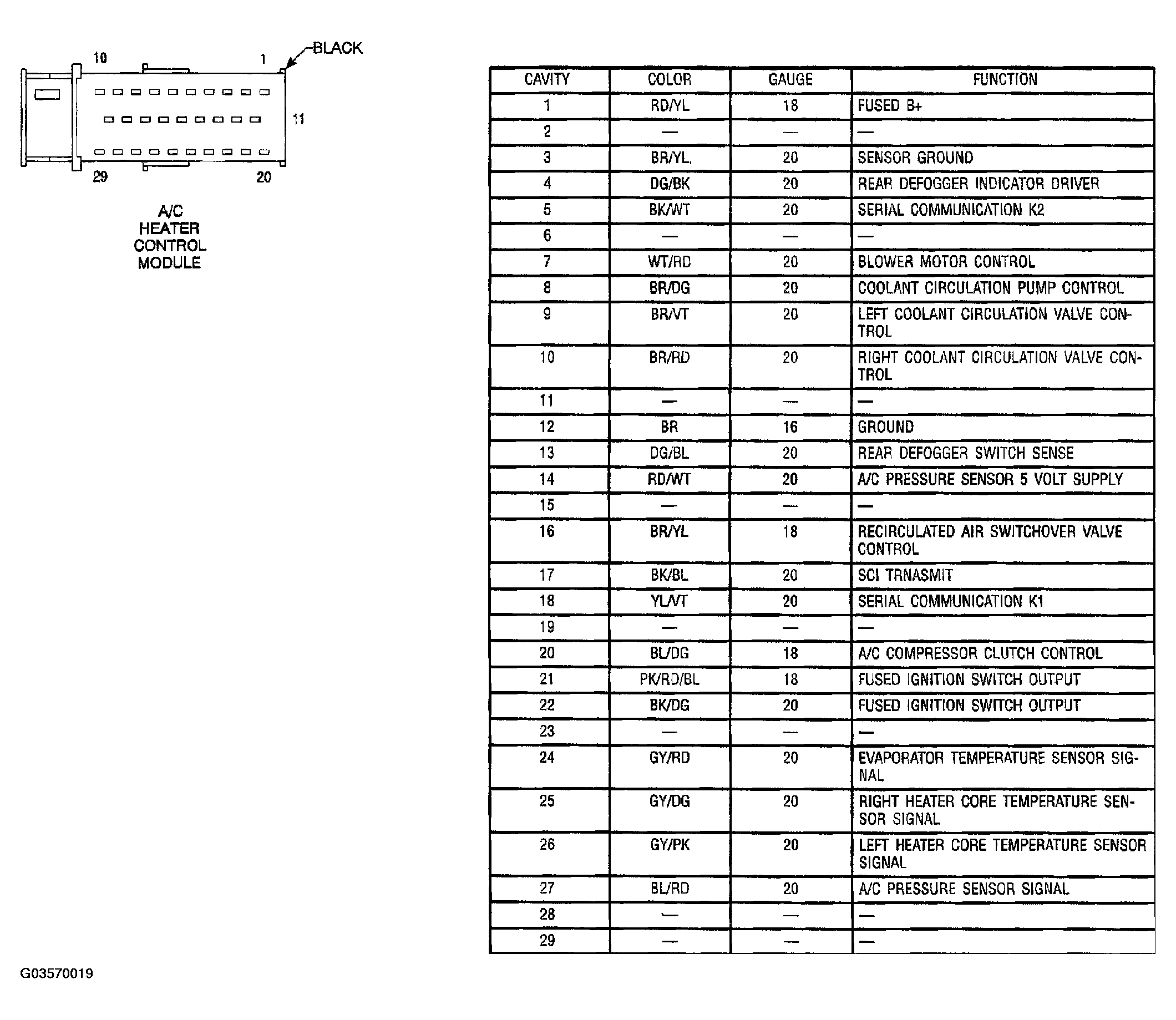

Fig 1: A/C Heater Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
