ESP Lateral Acceleration Sensor Connector End View
ESP Lateral Acceleration Sensor Connector End View

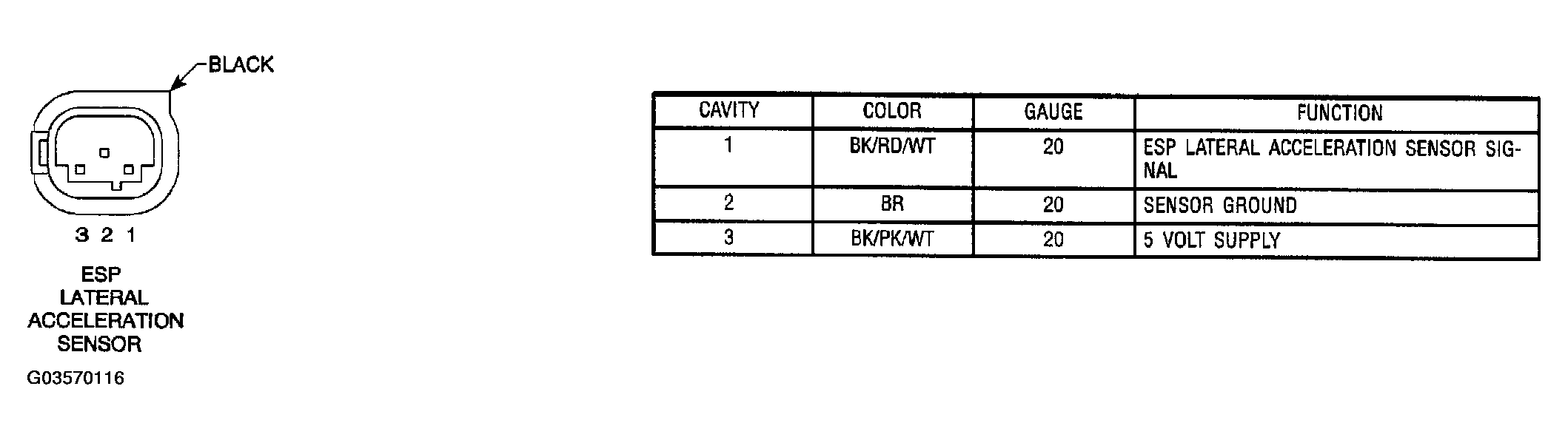

Fig 1: ESP Lateral Acceleration Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
