Oil Level/Temperature Sensor: Installation

  1. Position the oil level/temperature sensor in the upper oil pan with the screws (1).
  2. Position the harness retainer in the upper oil pan with the screws (2).

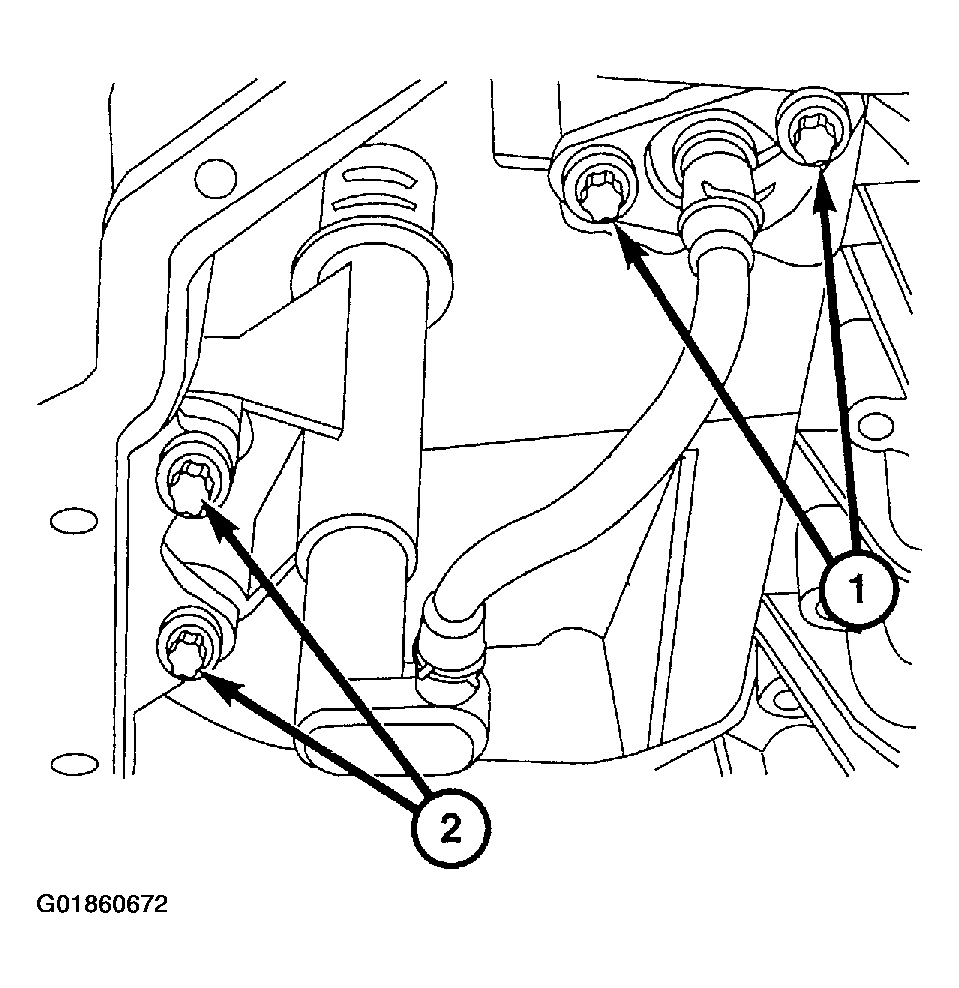

    Fig 1: Installing Oil Level/Temperature Sensor & Harness Retainer
    G01860672Courtesy of DAIMLERCHRYSLER CORP.
  3. Tighten all screws for the oil level/temperature sensor to 10 N.m (89 in. lbs.).
  4. Connect the oil level/temperature sensor harness connector (1).

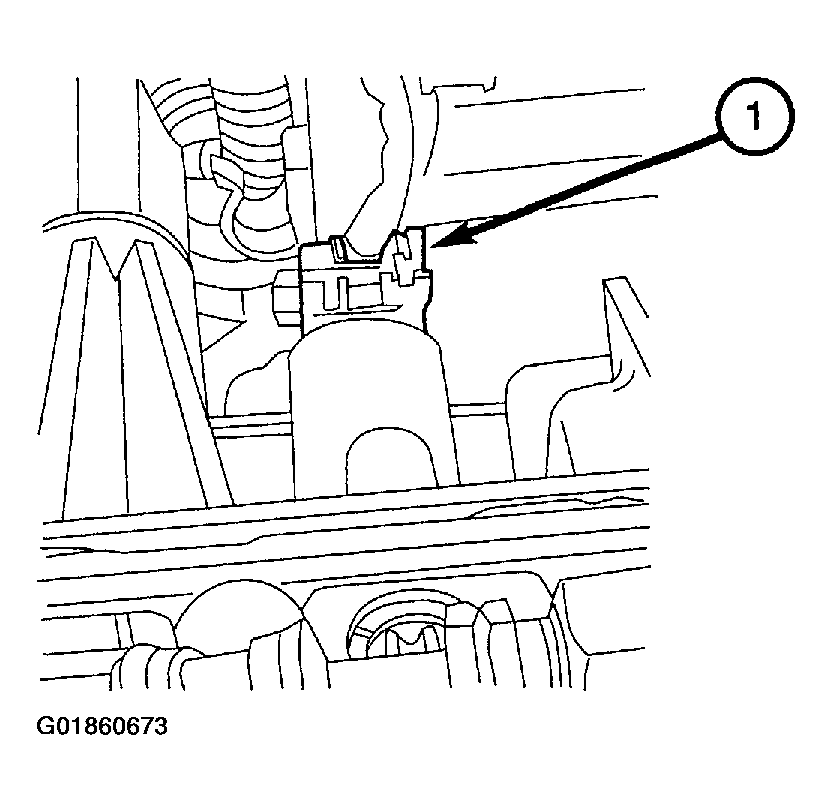

    Fig 2: Connecting Oil Level/Temperature Sensor Harness Connector
    G01860673Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the lower oil pan. See OIL PAN .
