Circuit Diagram & Connector Identification

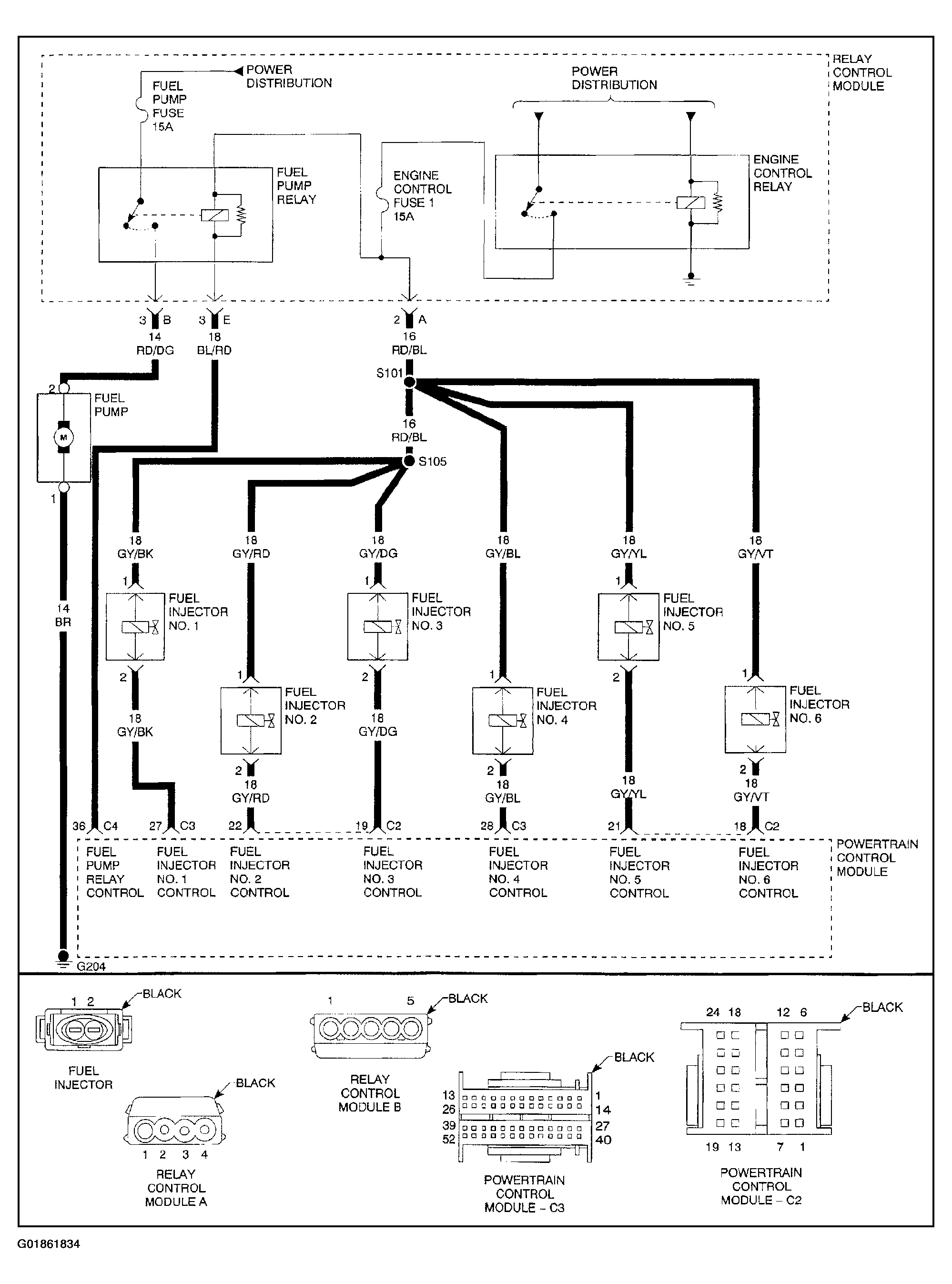

Fig 1: Identifying Hard Start (Fuel System) Circuit Diagram & Connector Identification
G01861834Courtesy of DAIMLERCHRYSLER CORP.
