Circuit Diagram & Connector Identification

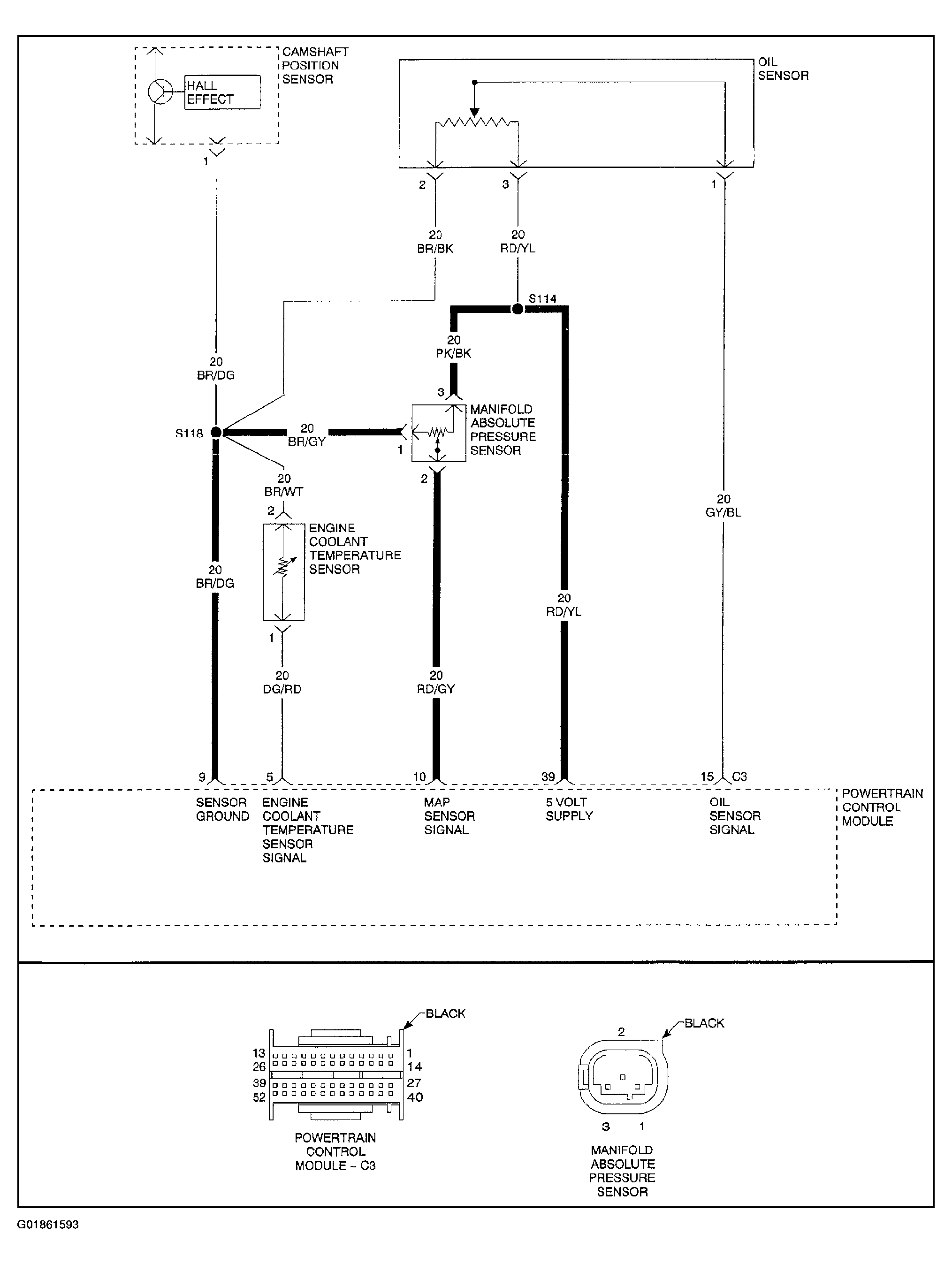

Fig 1: Identifying DTC P0107 Circuit Diagram & Connector Identification
G01861593Courtesy of DAIMLERCHRYSLER CORP.
