Circuit Diagram & Connector Identification

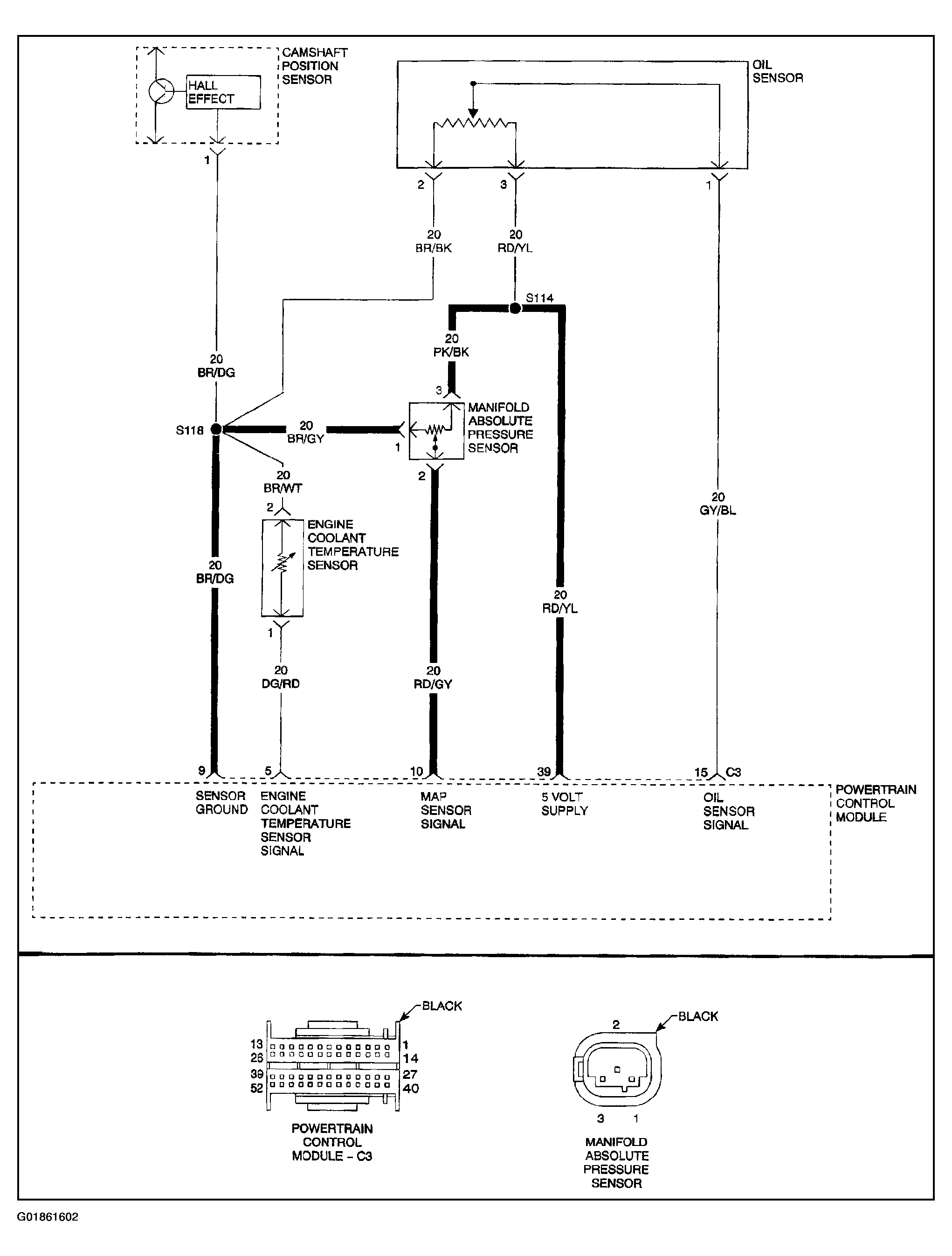

Fig 1: Identifying DTC P0108 Circuit Diagram & Connector Identification
G01861602Courtesy of DAIMLERCHRYSLER CORP.
