DTC P0141: O2 Sensor 1/2 Heater Circuit High
›
Circuit Diagram & Connector Diagram
Circuit Diagram & Connector Diagram

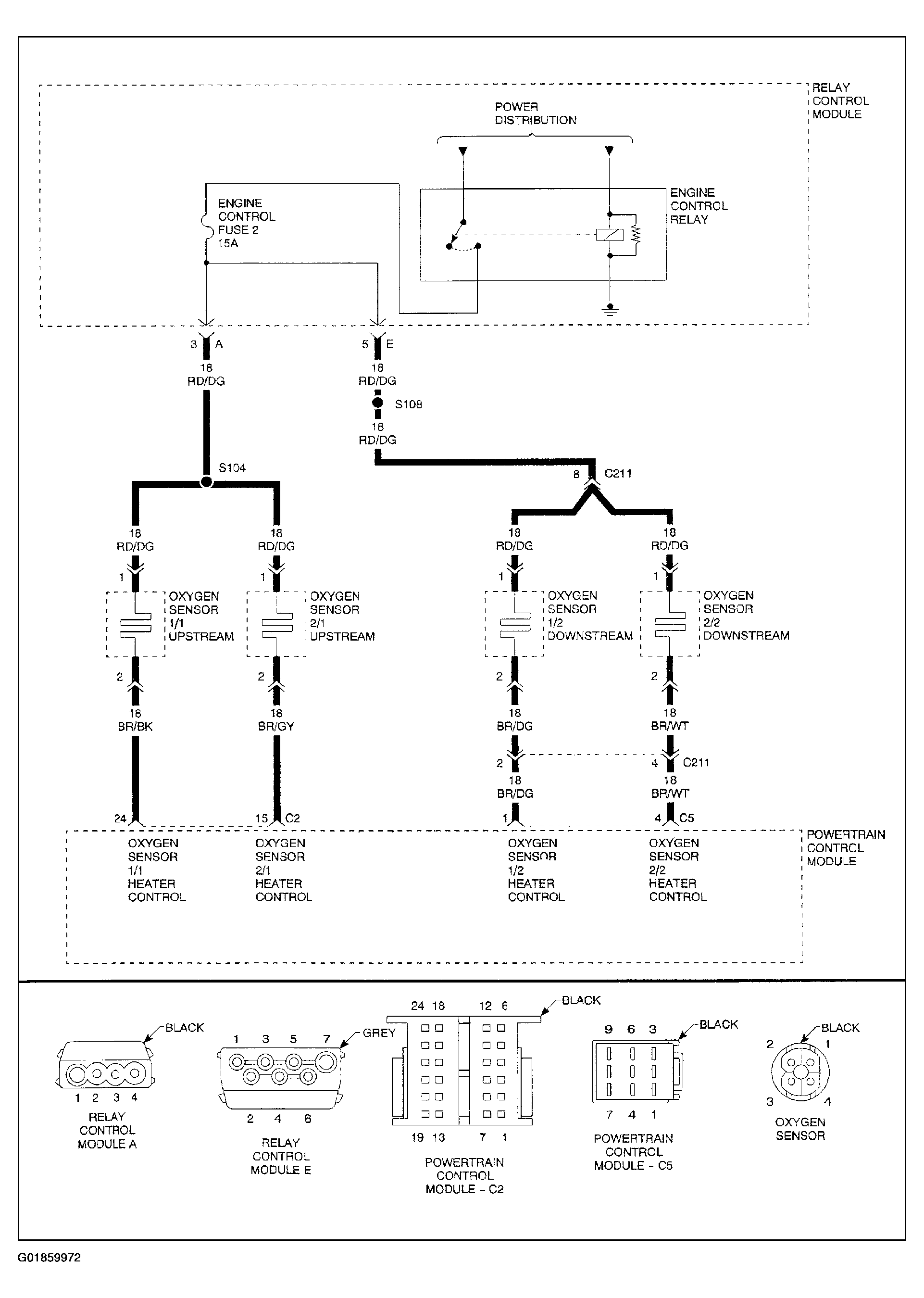

Fig 1: Identifying DTC P0141 Circuit Diagram & Connector Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
