Circuit Diagram & Connector Identification

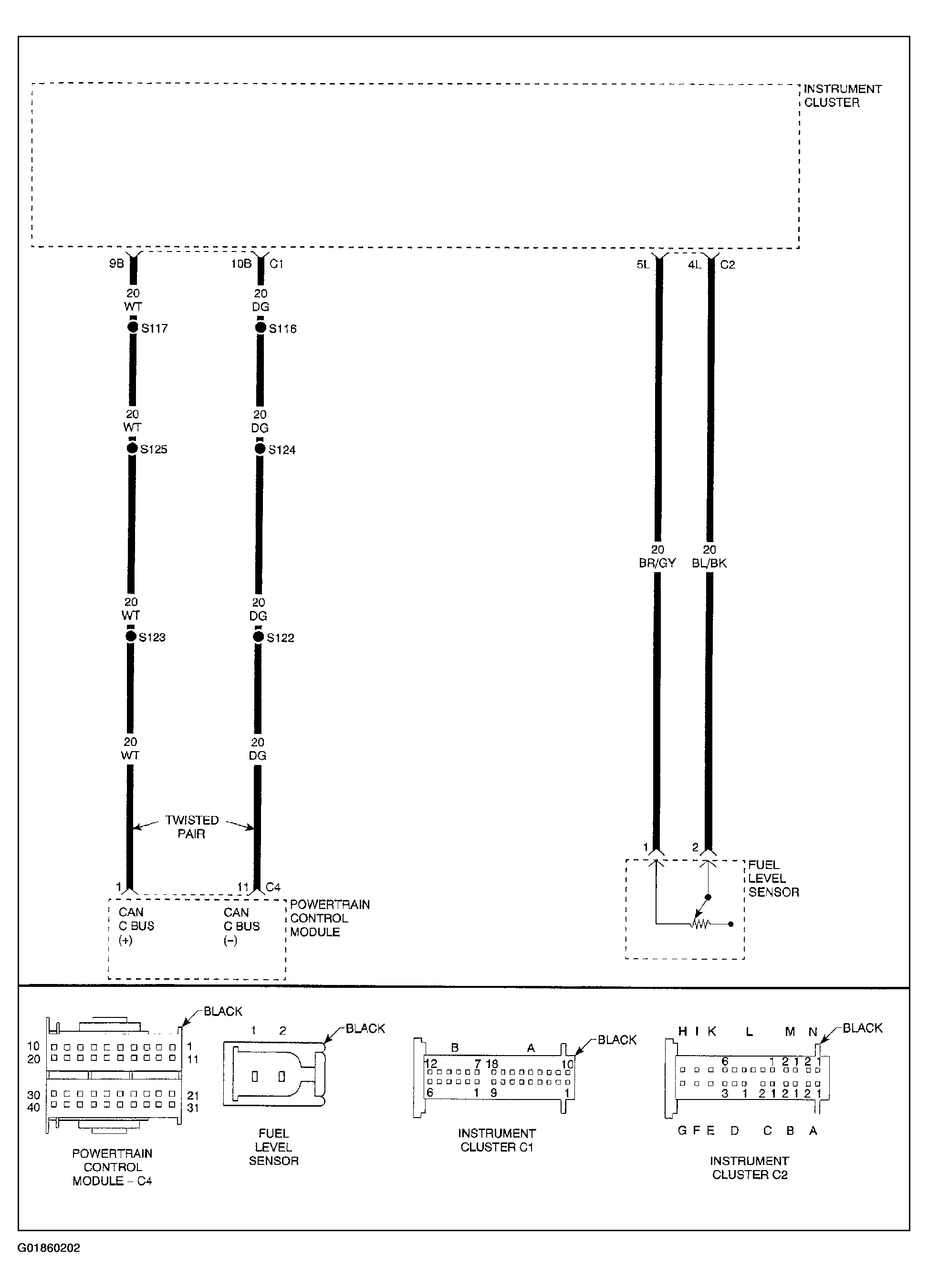

Fig 1: Identifying DTC P0460 Circuit Diagram & Connector Identification
G01860202Courtesy of DAIMLERCHRYSLER CORP.
