DTC P1386: Knock Sensor System Failure
›
Circuit Diagram & Connector Identification
Circuit Diagram & Connector Identification

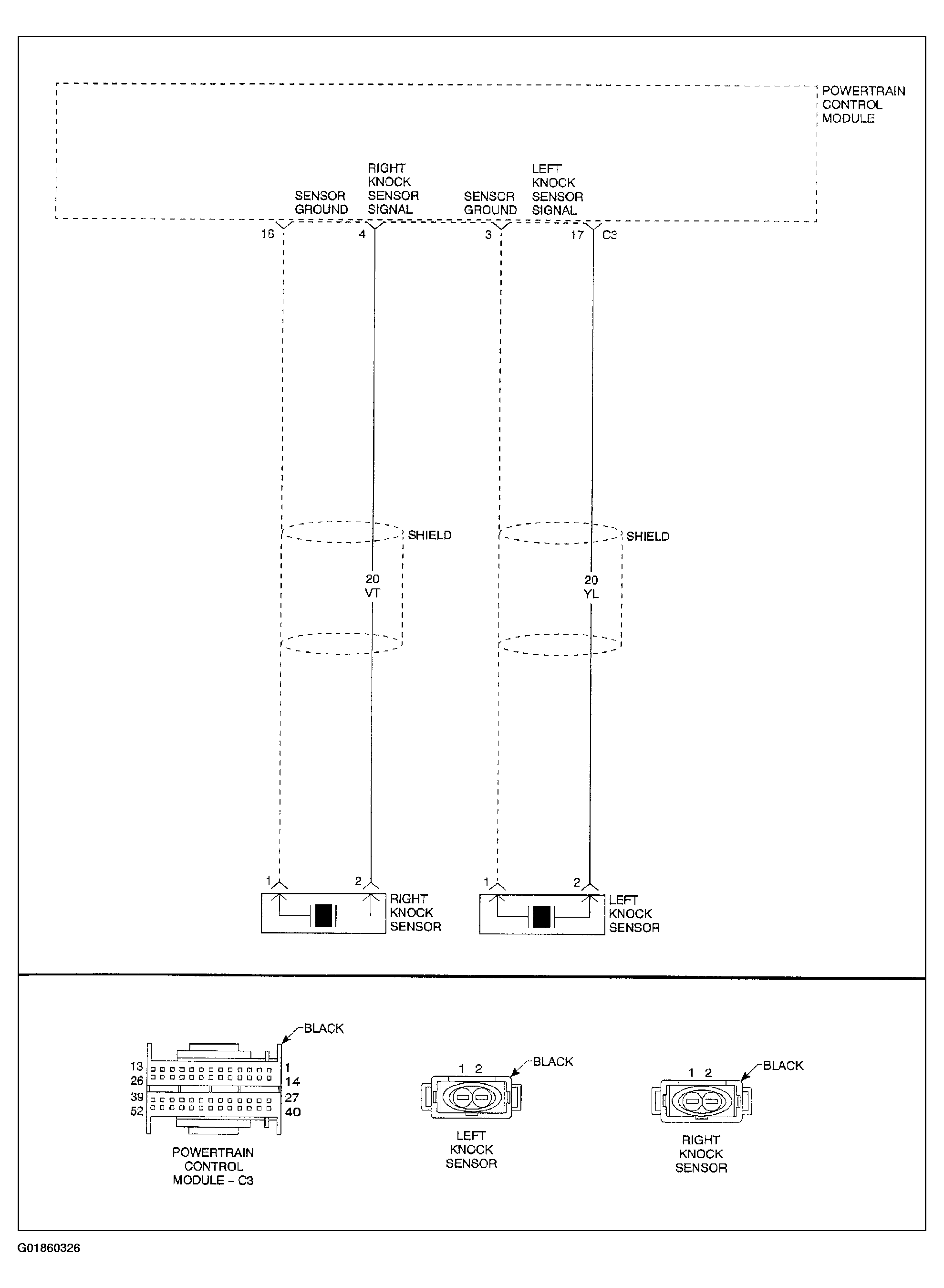

Fig 1: Identifying DTC P1386 Circuit Diagram & Connector Identification
Courtesy of DAIMLERCHRYSLER CORP.
