Coolant Level Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Lubricate the new coolant level sensor O-ring with coolant.
Push the coolant level sensor (2) into the coolant recovery reservoir until it snaps into place.
Connect the coolant level sensor harness connector (1).

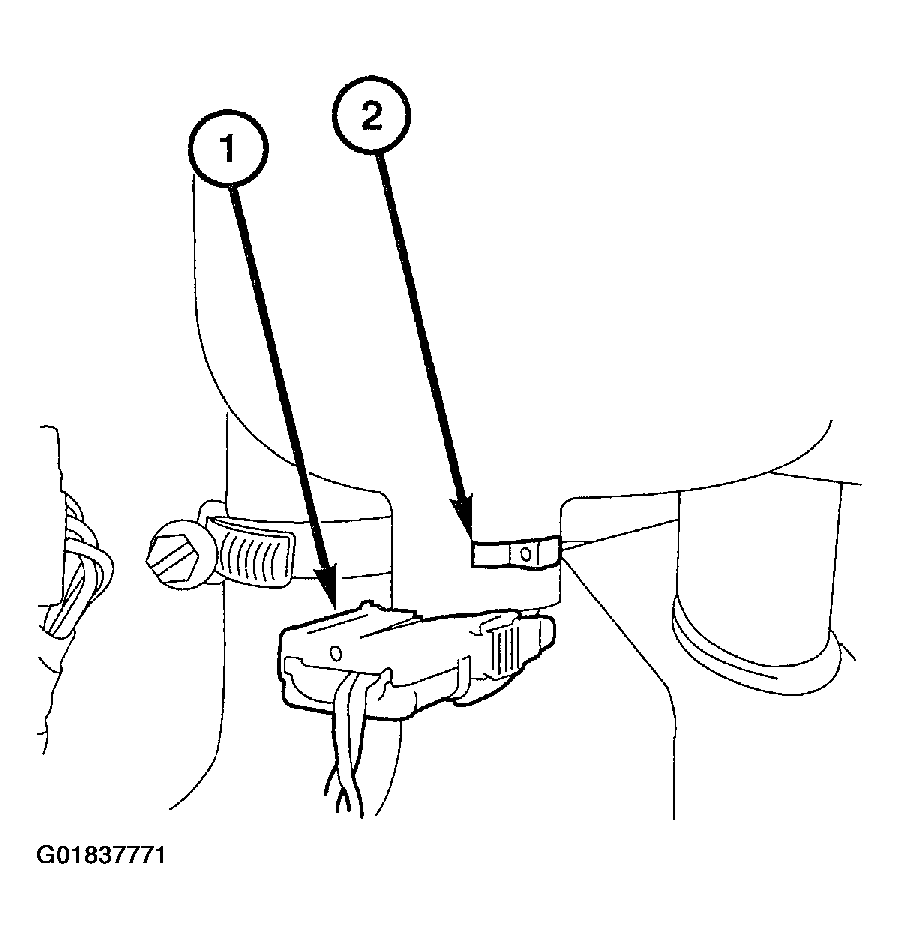

Fig 1: Installing Coolant Level Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Refill the cooling system. See STANDARD PROCEDURE - REFILLING COOLING SYSTEM .
Start the engine and check for coolant leaks.
Recheck the coolant level and adjust as necessary.
