Engine Coolant Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Partially drain the cooling system. See DRAINING COOLING SYSTEM .
  3. Disconnect the engine coolant temperature sensor harness connector (1).

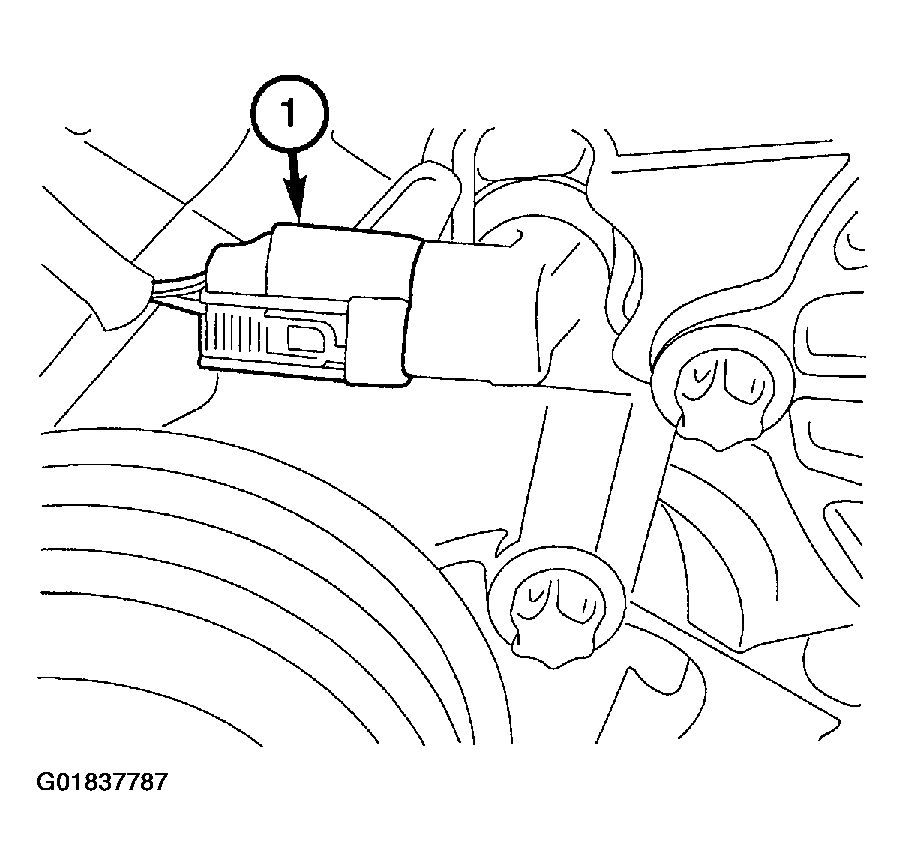

    Fig 1: Disconnecting Engine Coolant Temperature Sensor Harness Connector
    G01837787Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the engine coolant temperature sensor retaining clip (1) and the sensor.

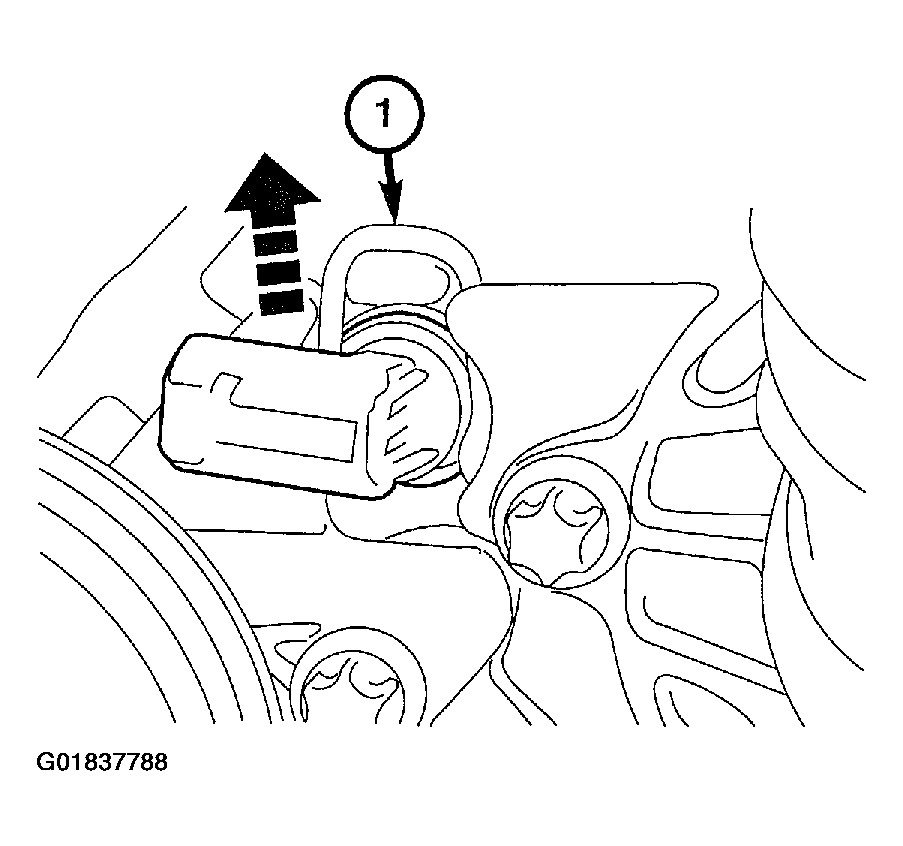

    Fig 2: Removing Engine Coolant Temperature Sensor Retaining Clip & Sensor
    G01837788Courtesy of DAIMLERCHRYSLER CORP.
