Radiator Fan: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE: The two retaining studs of the radiator fan must be located at the bottom in the rubber mounts. Lightly lubricate the two retaining studs (1).
  1. Position the radiator fan in the rubber mounts.

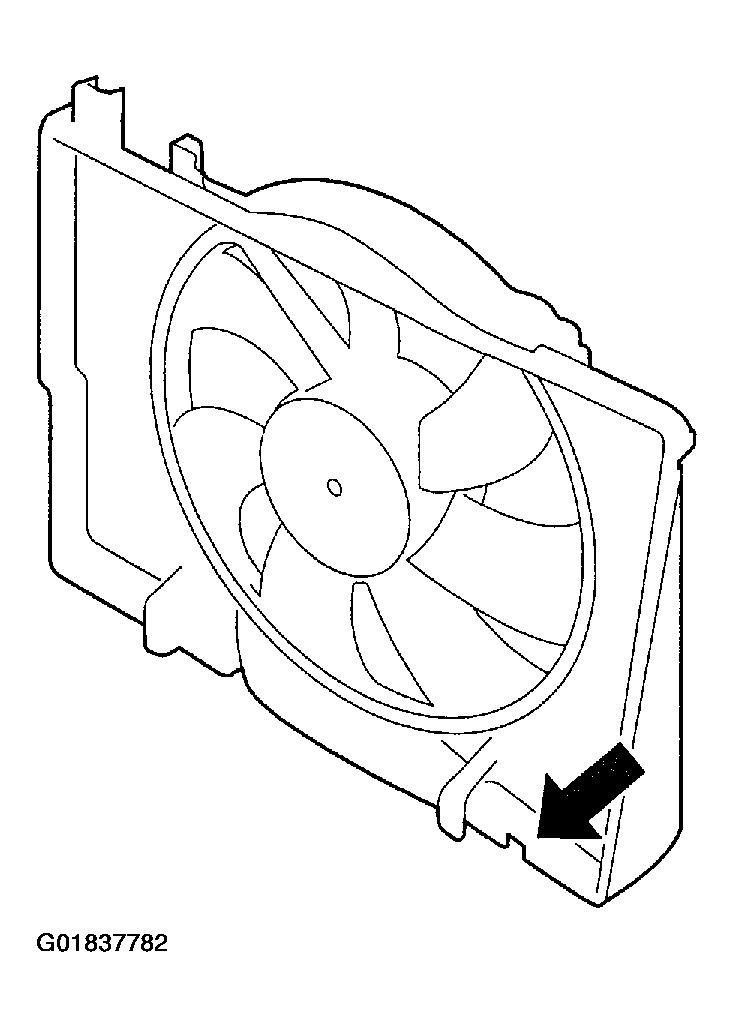

    Fig 1: Positioning Radiator Fan
    G01837782Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the radiator fan hold down clamps (1).

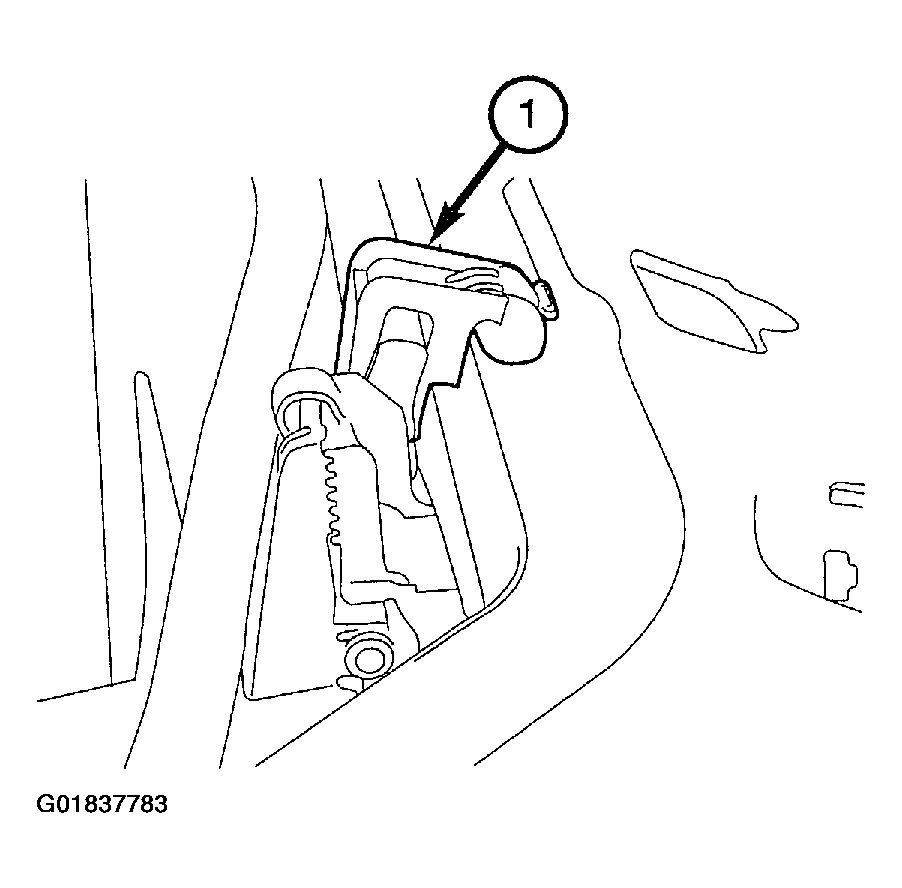

    Fig 2: Installing Radiator Fan Hold Down Clamps
    G01837783Courtesy of DAIMLERCHRYSLER CORP.
  3. Route the coolant hose (1) through the bracket (2) on the radiator fan.
    Fig 3: Routing Coolant Hose
    G01837784Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the radiator fan harness connector (1).

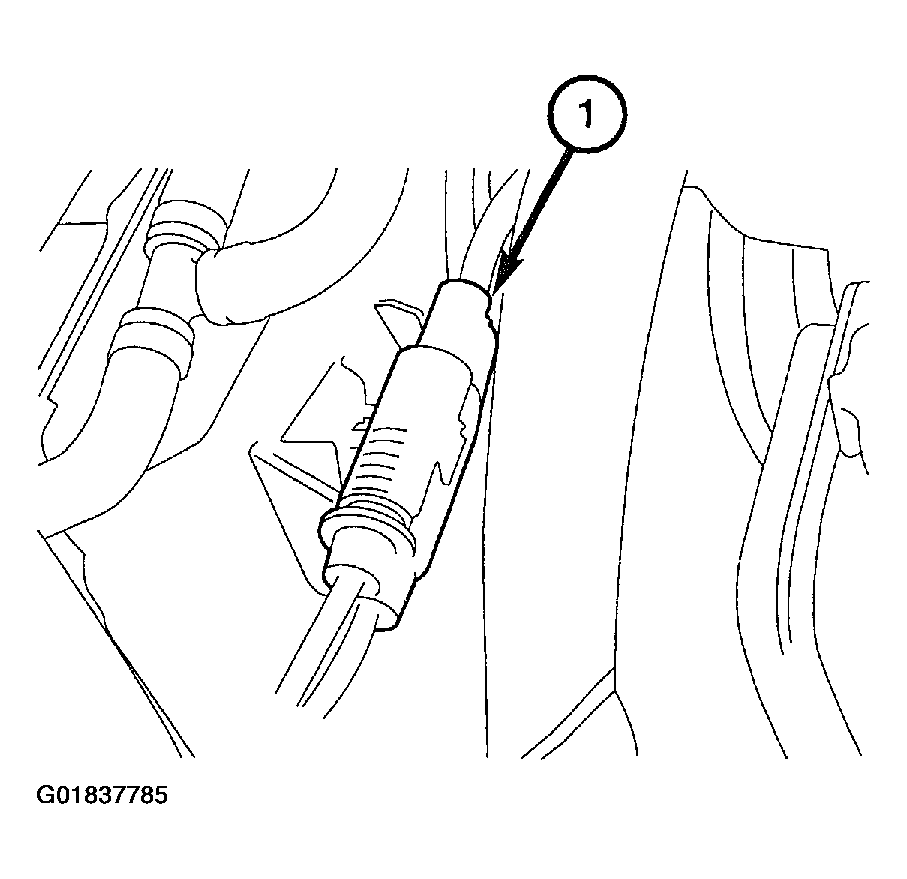

    Fig 4: Connecting Radiator Fan Harness Connector
    G01837785Courtesy of DAIMLERCHRYSLER CORP.
  5. Connect the negative battery cable.
