Driver Cylinder Lock Switch Connector End View
Driver Cylinder Lock Switch Connector End View

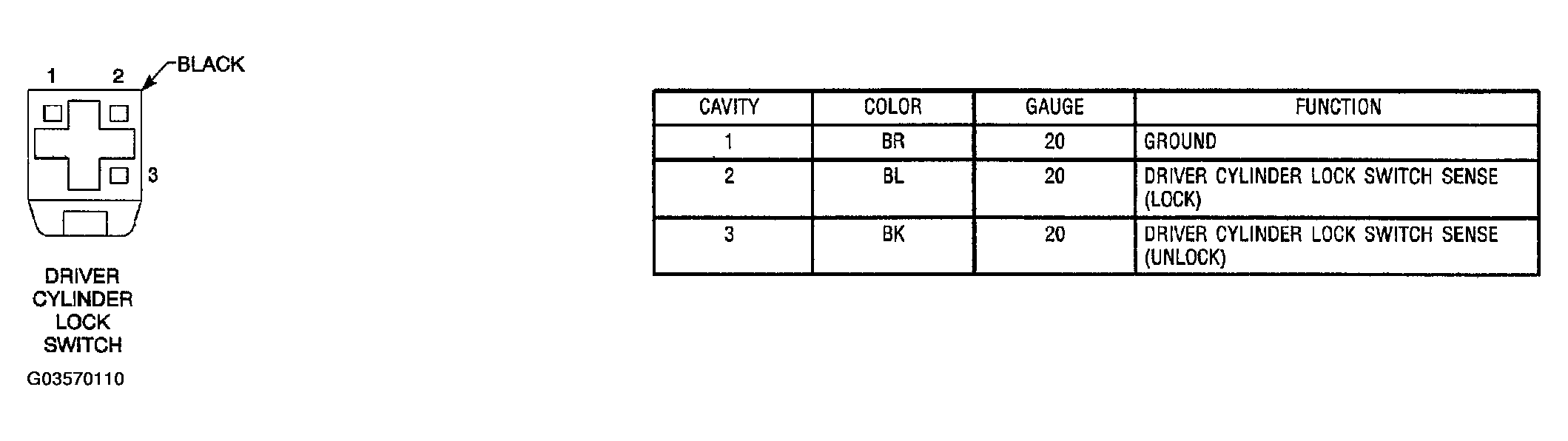

Fig 1: Driver Cylinder Lock Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
