Fuel Tank Pressure Sensor Connector End View

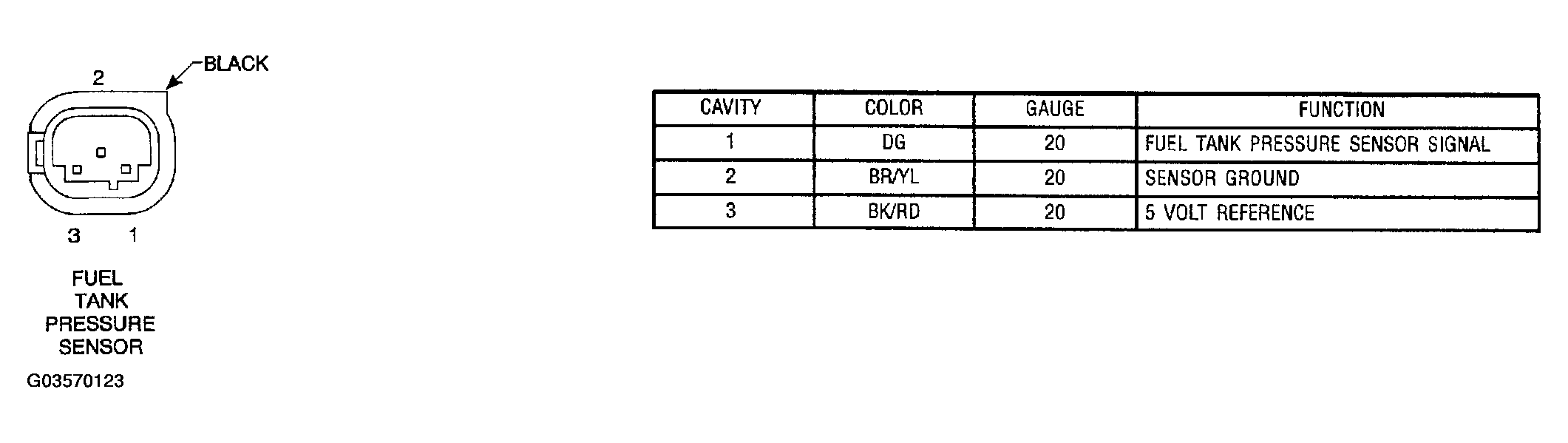

Fig 1: Fuel Tank Pressure Sensor Connector End View
G03570123Courtesy of DAIMLERCHRYSLER CORP.
