Illumination Control Module Connector End View (D)

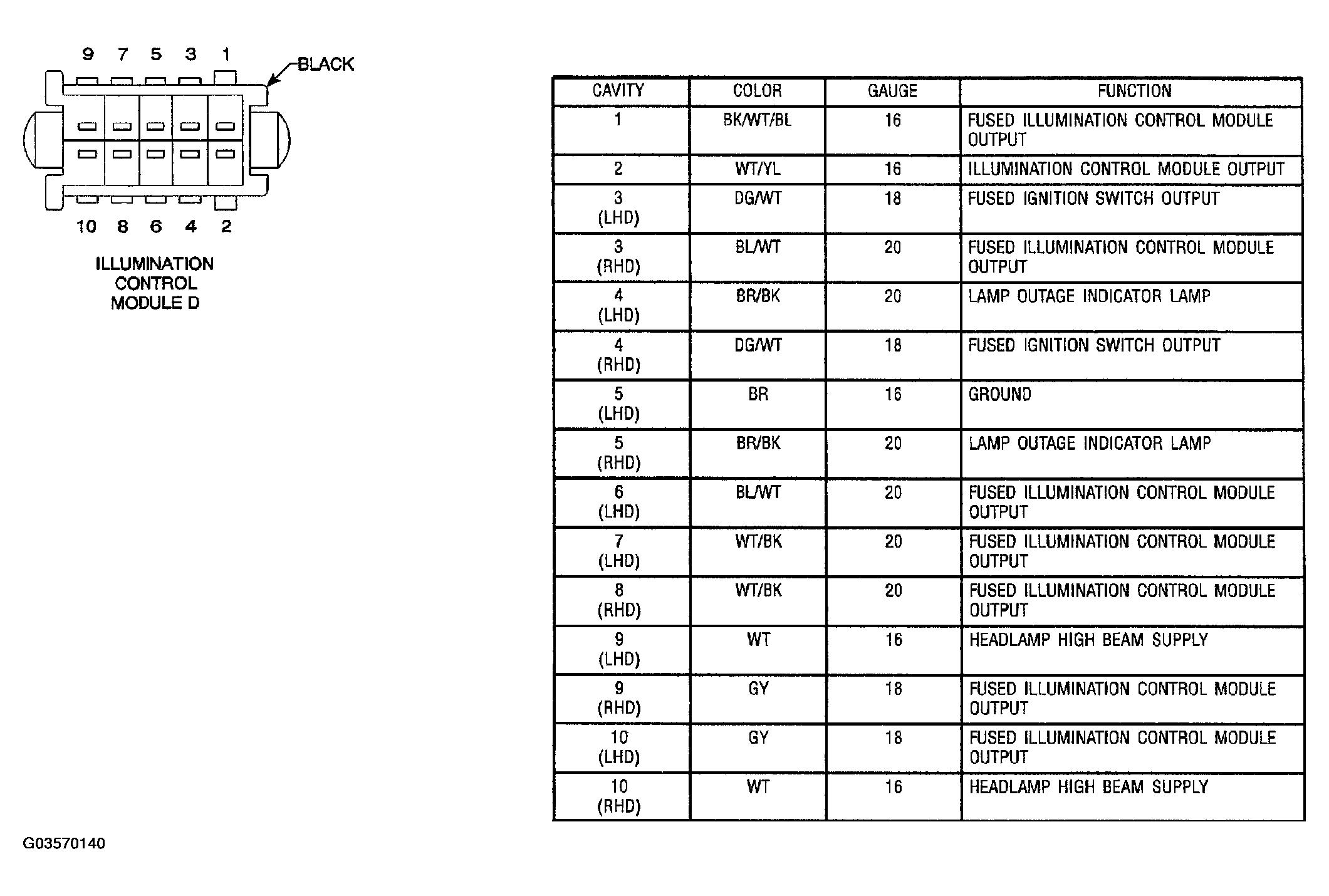

Fig 1: Illumination Control Module Connector End View (D)
G03570140Courtesy of DAIMLERCHRYSLER CORP.
