Inline Connector End View (C105)

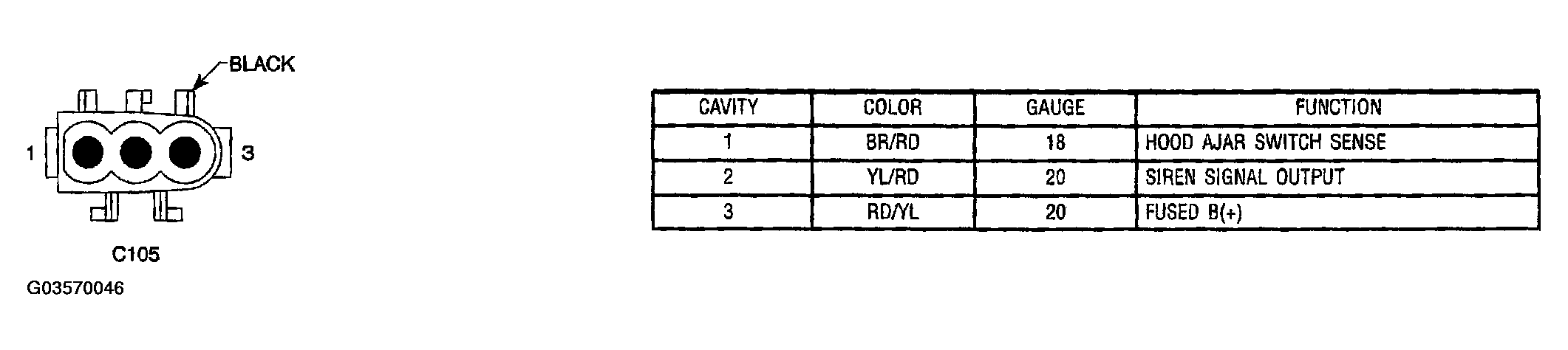

Fig 1: Inline Connector End View (C105)
G03570046Courtesy of DAIMLERCHRYSLER CORP.

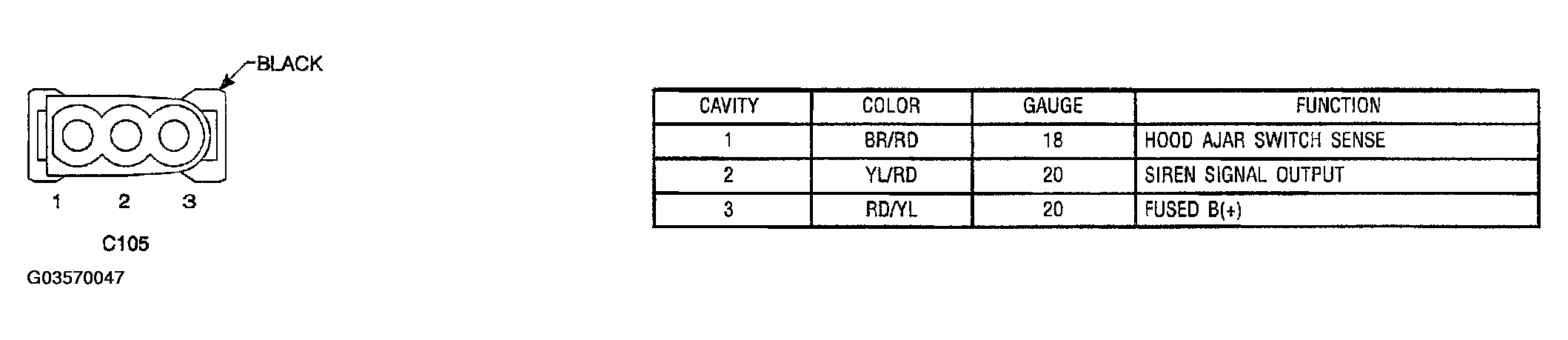

Fig 1: Inline Connector End View (C105)
G03570047Courtesy of DAIMLERCHRYSLER CORP.
