Inline Connector End View (C219)

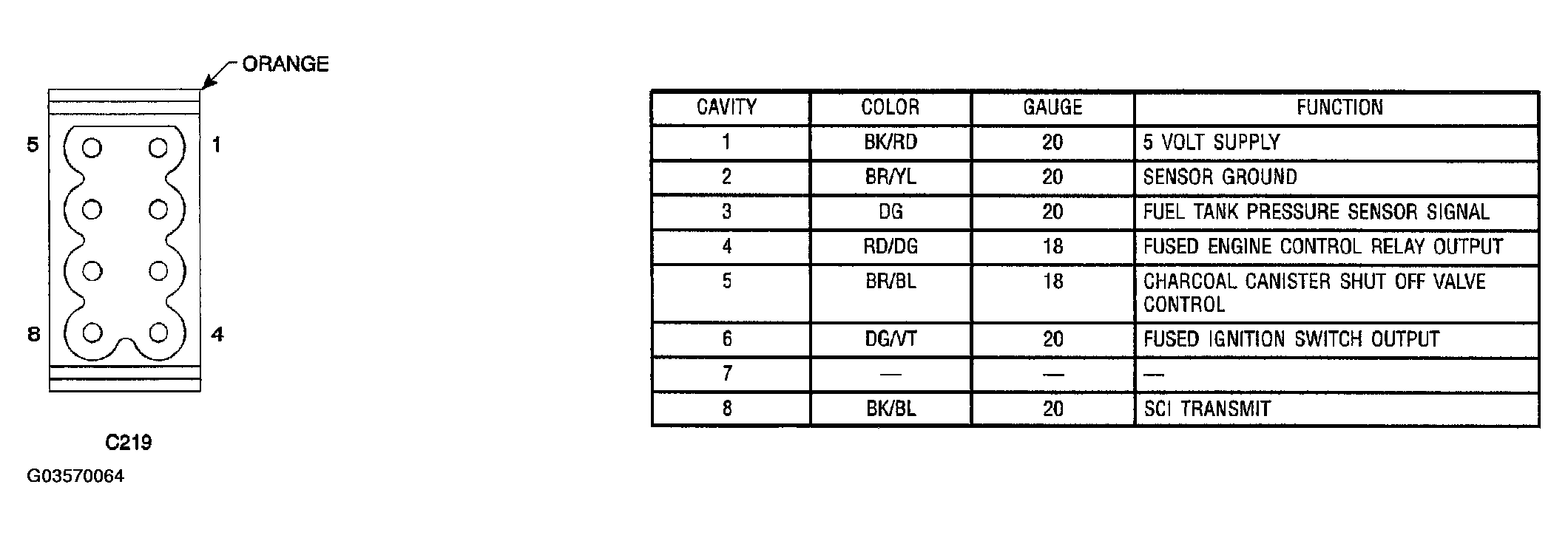

Fig 1: Inline Connector End View (C219)
G03570064Courtesy of DAIMLERCHRYSLER CORP.

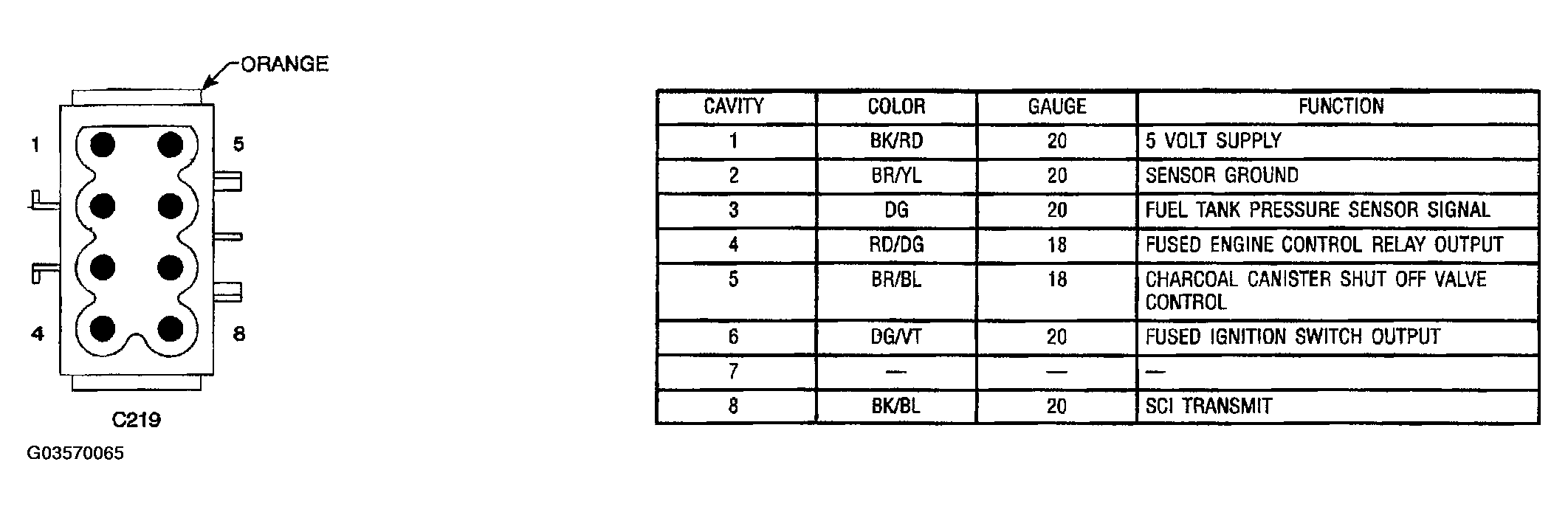

Fig 1: Inline Connector End View (C219)
G03570065Courtesy of DAIMLERCHRYSLER CORP.
