Relay Control Module Connector End View (A)

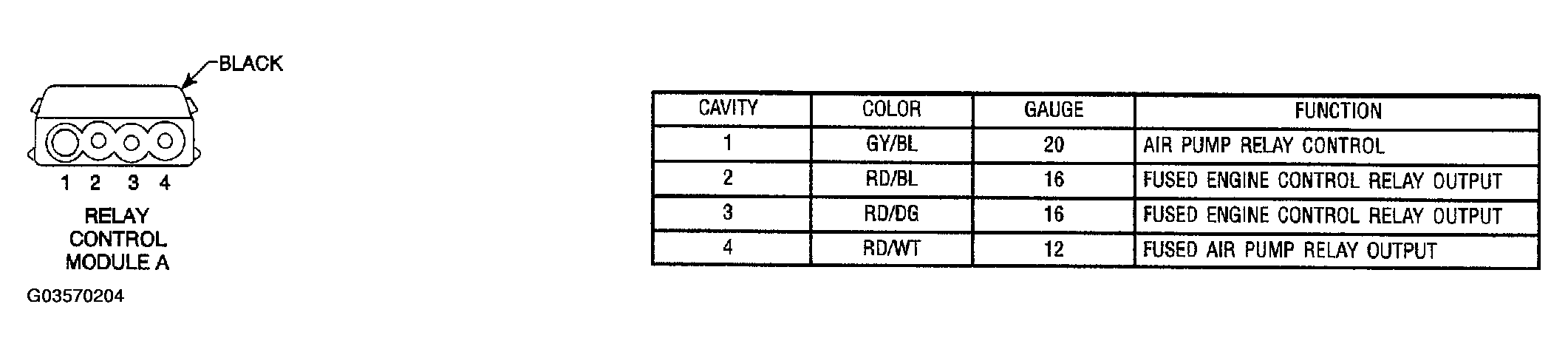

Fig 1: Relay Control Module Connector End View (A)
G03570204Courtesy of DAIMLERCHRYSLER CORP.
