Rack & Pinion Power Steering System: Damper: Installation
- Install the steering damper into the vehicle.
- Install the nut and bolt to the drag link. Tighten to 40 N.m (29 ft. lbs.).

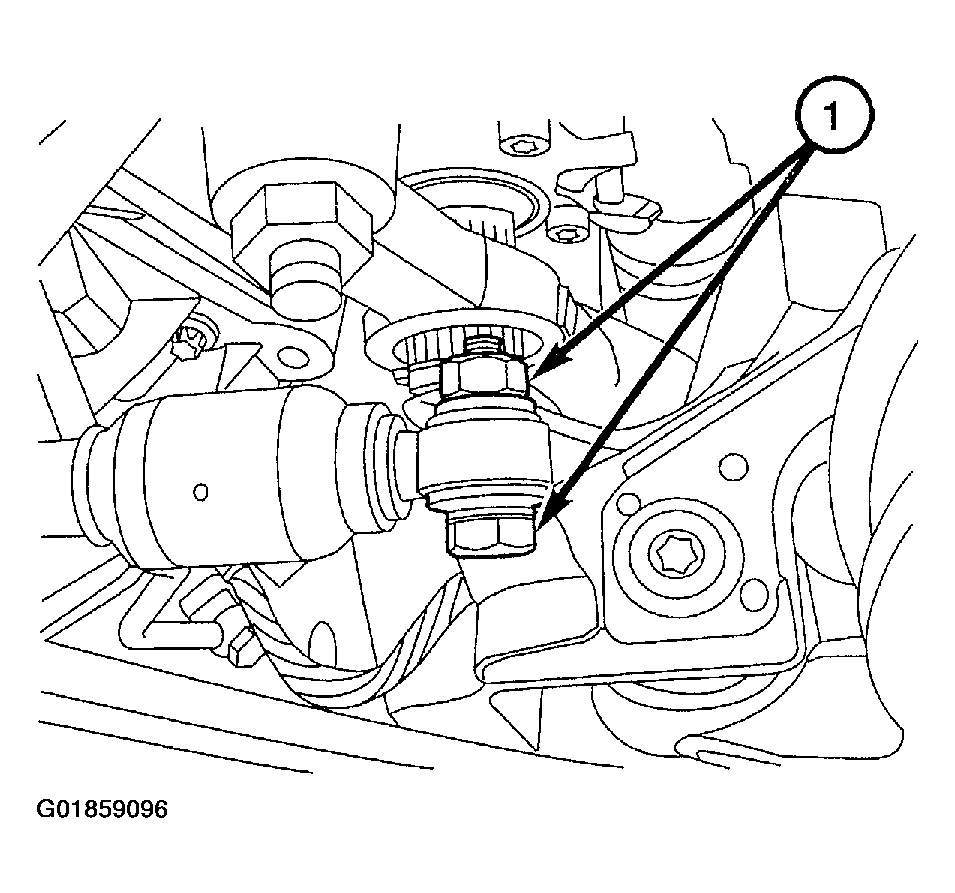

- Install the bolt and nut (1) to the steering damper bracket. Tighten to 40 N.m (29 ft. lbs.).
Courtesy of DAIMLERCHRYSLER CORP.
