Pitman Arm: Removal

Using Special Tool 9168 Ball Joint Puller remove the drag link from the pitman arm.

Fig 1: Removing Drag Link From Pitman Arm
Courtesy of DAIMLERCHRYSLER CORP.

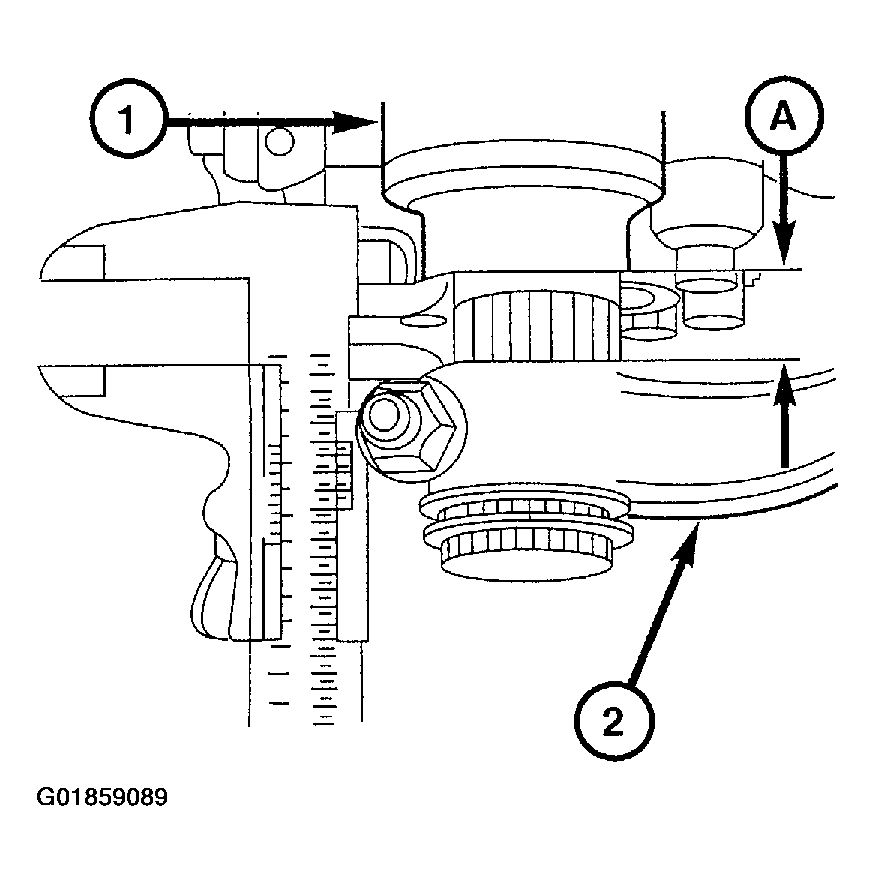

Measure the distance of point "A" between the pitman arm (2) and the steering gear (1) using a caliper gauge.

Fig 2: Measuring Distance Of Point "A" Between Pitman Arm & Steering Gear
Courtesy of DAIMLERCHRYSLER CORP.
Remove the snap ring (2) that holds the pitman arm (1) on the shaft.

Fig 3: Removing Snap Ring That Holds Pitman Arm On Shaft
Courtesy of DAIMLERCHRYSLER CORP.

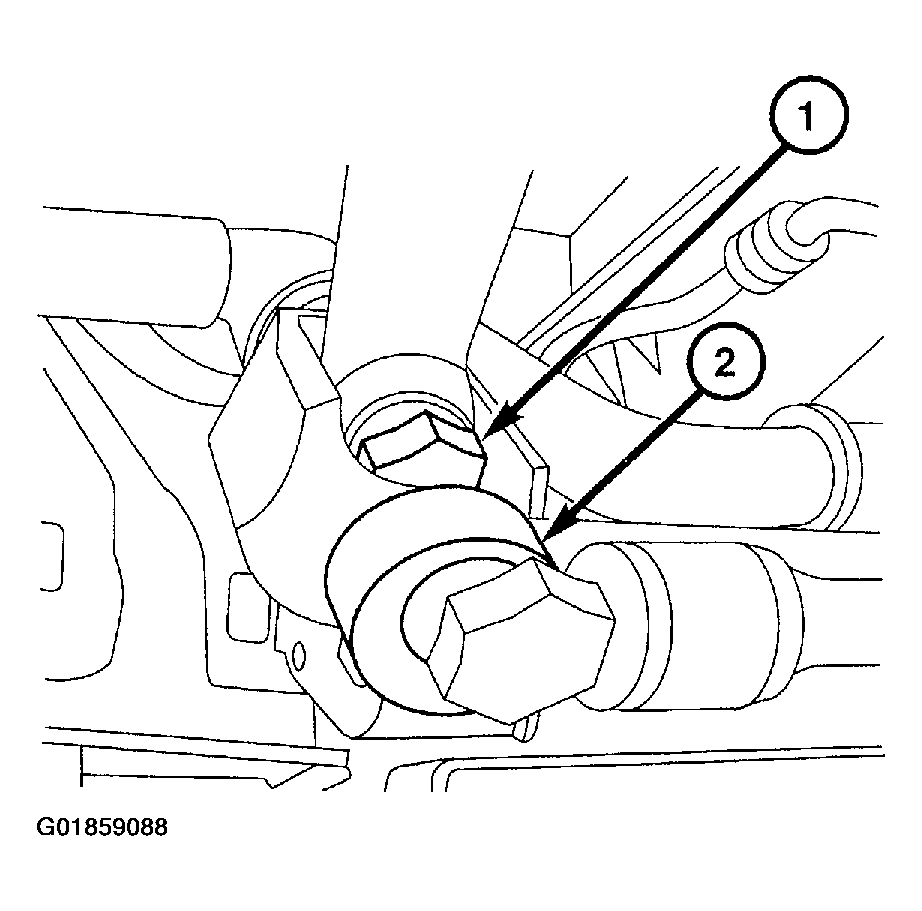

Remove the pitman arm by loosening the pinch bolt (1). With a prying device, remove the pitman arm from the pitman arm shaft (2).

Fig 4: Removing Pitman Arm
Courtesy of DAIMLERCHRYSLER CORP.
