Clutch Disc: Removal

  1. Remove the transmission. See MANUAL - REMOVAL & INSTALLATION .
    2. NOTE: Remove clutch cover bolts 1 to 1 1/2 turns at a time.
  2. Loosen the bolts (1) on the clutch cover.
  3. Mark the relation of the clutch cover to the flywheel.
  4. Remove the bolts (1) on the clutch cover.

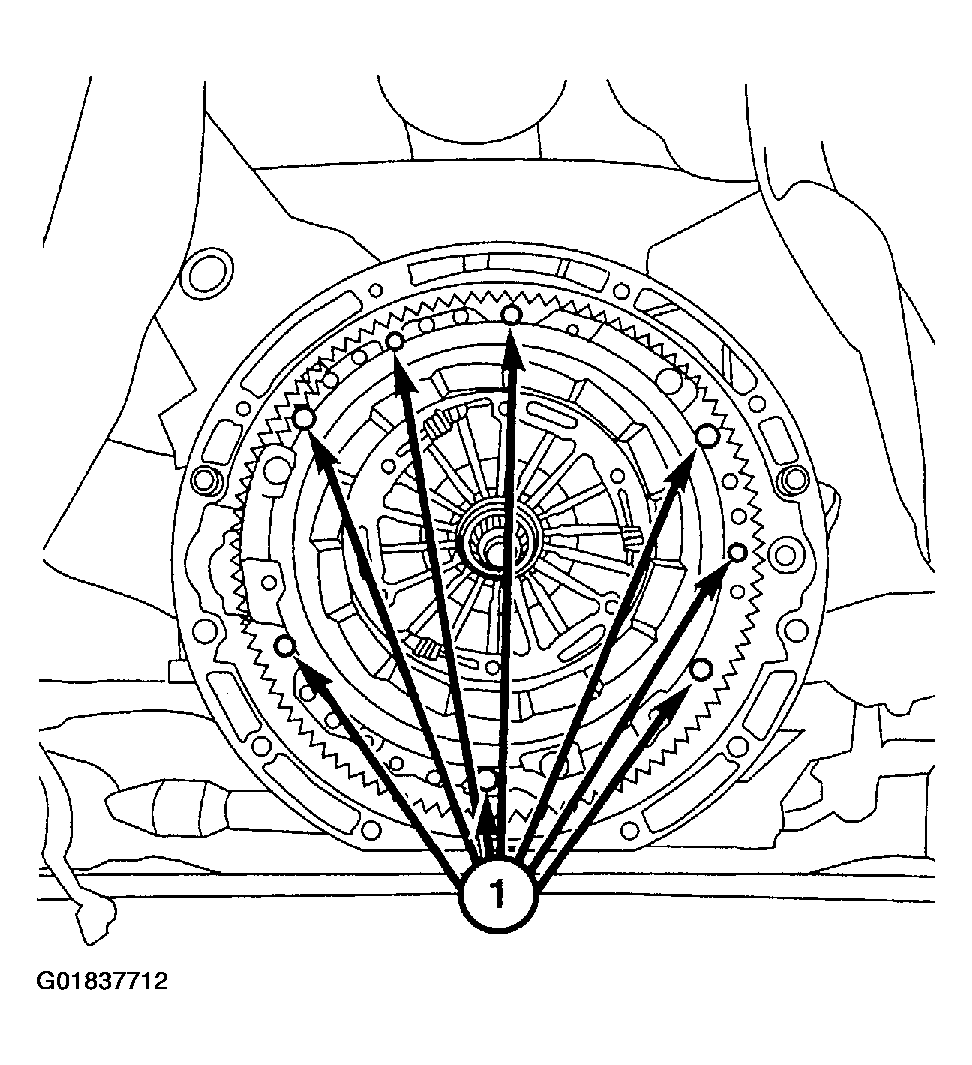

    Fig 1: Locating Clutch Cover Bolts
    G01837712Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the clutch cover (1) and the clutch disc (2).

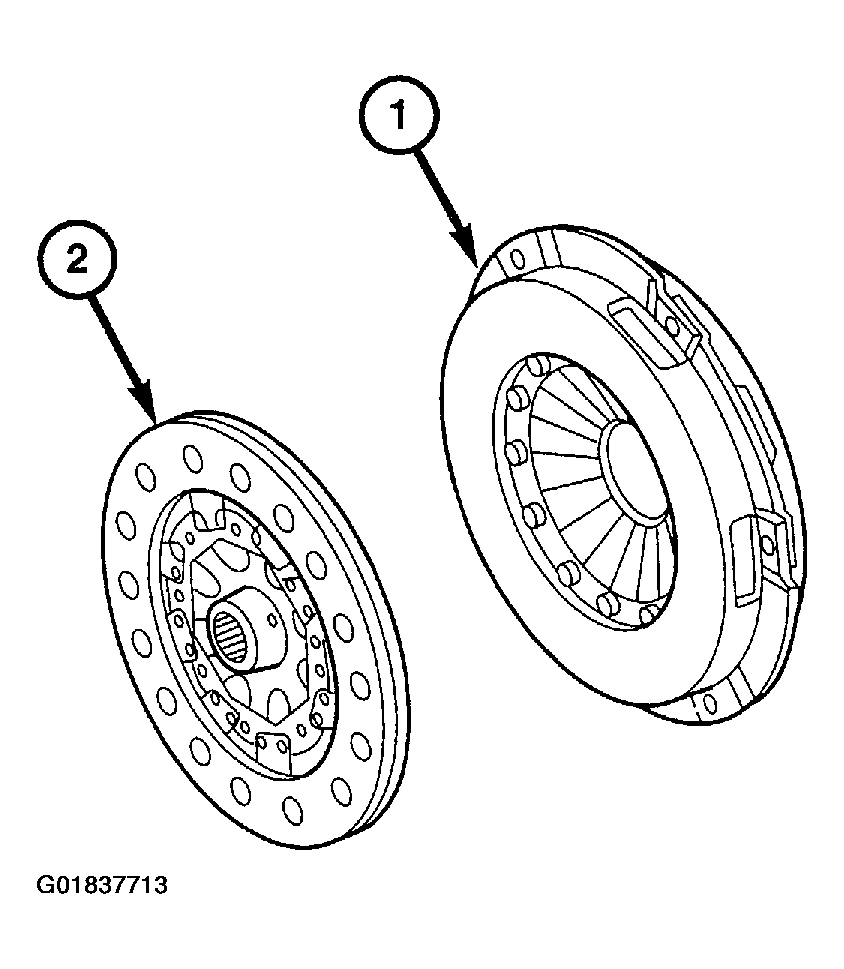

    Fig 2: Removing Clutch Cover & Clutch Disc
    G01837713Courtesy of DAIMLERCHRYSLER CORP.
