Manual Temperature Control Head C2 Connector End View
Manual Temperature Control Head C2 Connector End View

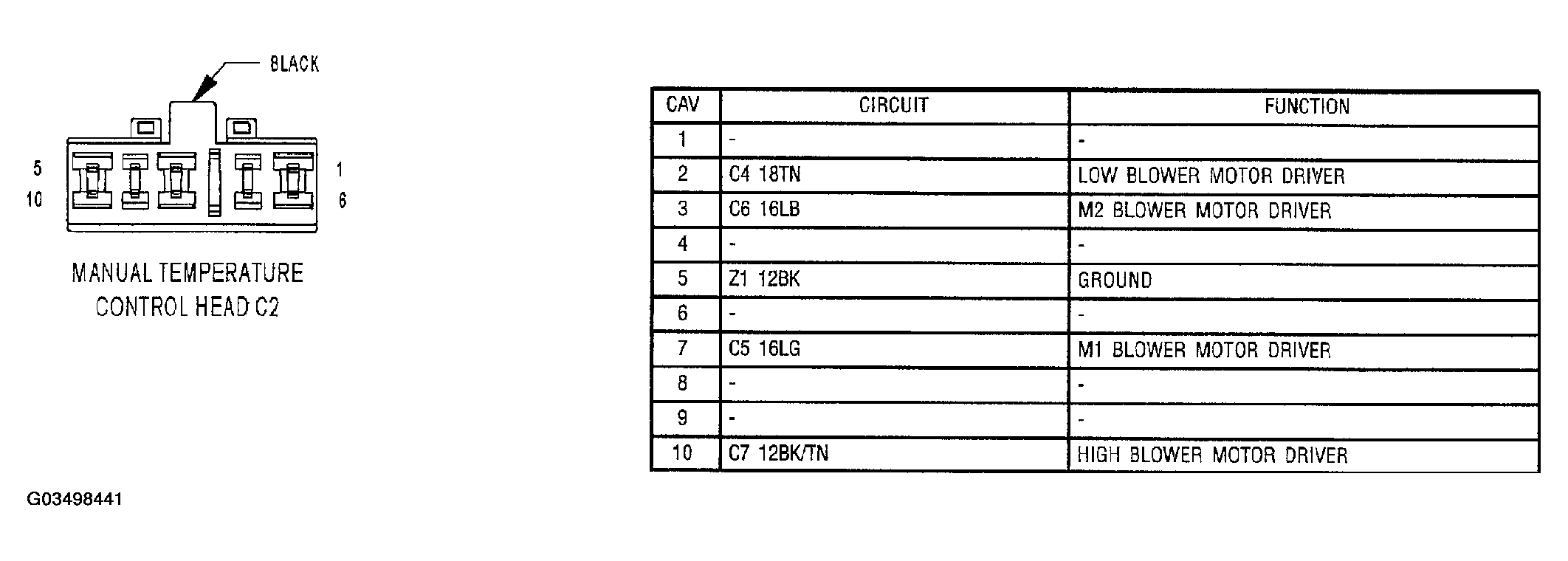

Fig 1: Manual Temperature Control Head Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
