Left Rear Wheel Speed Sensor Connector End View
Left Rear Wheel Speed Sensor Connector End View

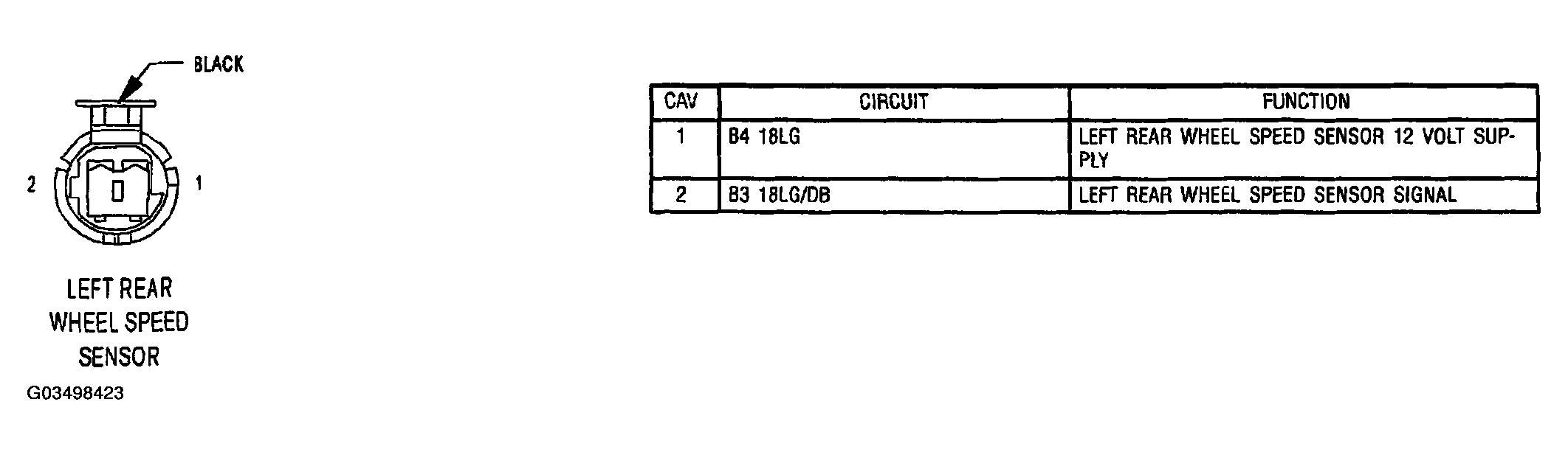

Fig 1: Left Rear Wheel Speed Sensor Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
