Component Locations: Fuses

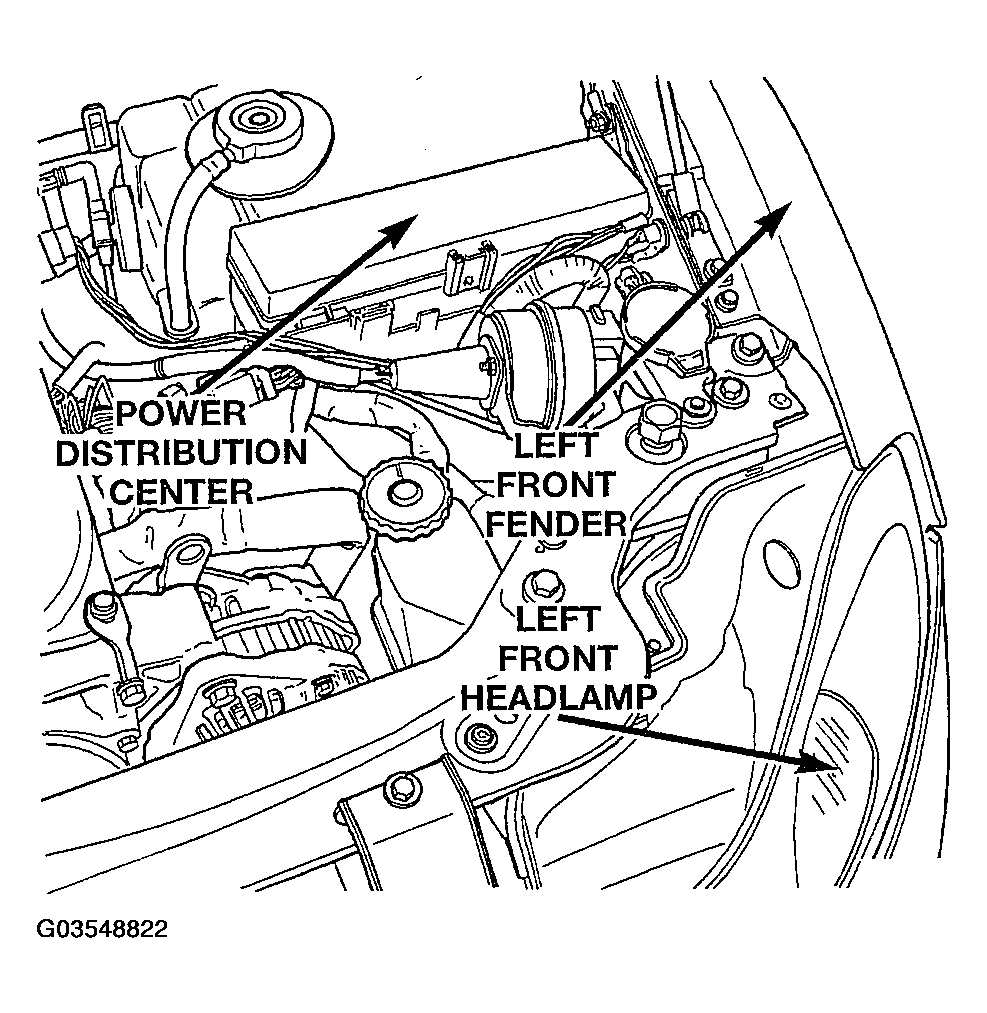

Fig 1: Identifying Power Distribution Center Fuse Locations
G03548822Courtesy of DAIMLERCHRYSLER CORP.

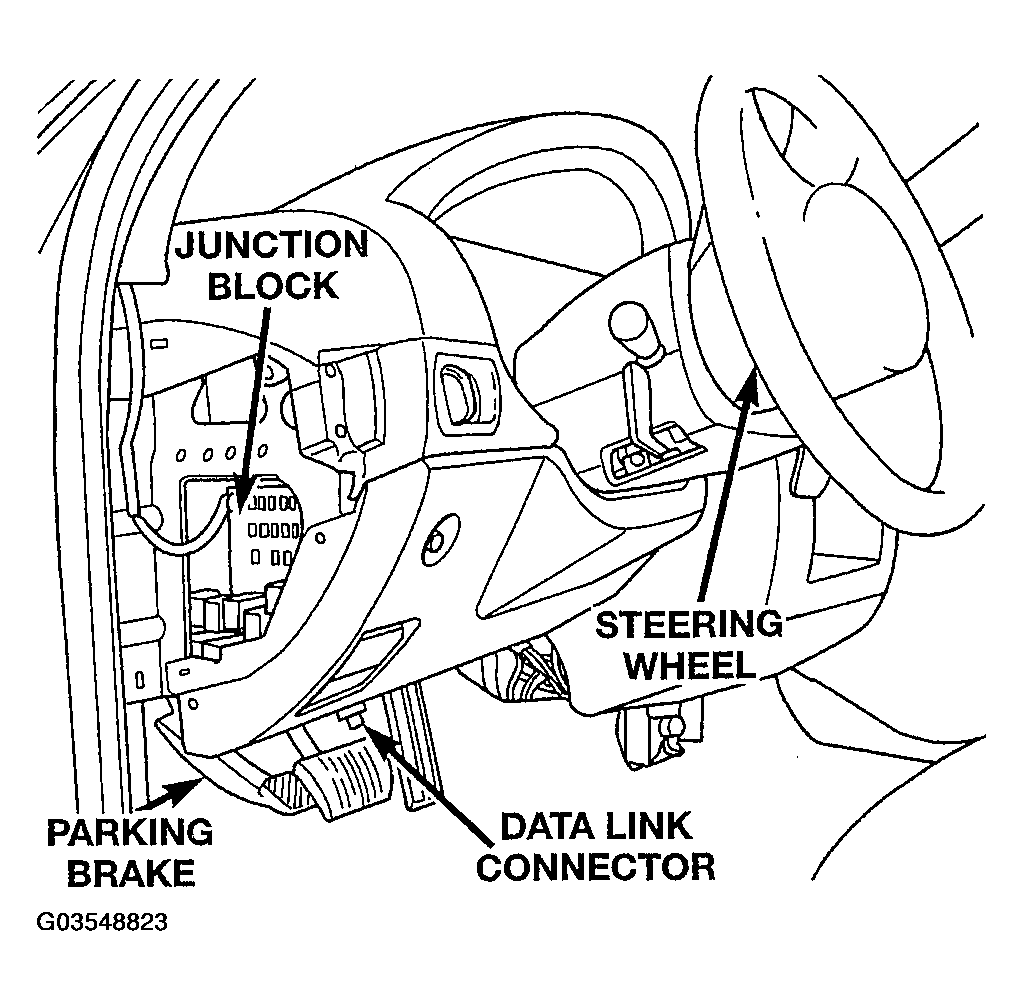

Fig 2: Identifying Junction Block Fuse Locations
G03548823Courtesy of DAIMLERCHRYSLER CORP.
