Body Control Module C1 Connector End View
Body Control Module C1 Connector End View

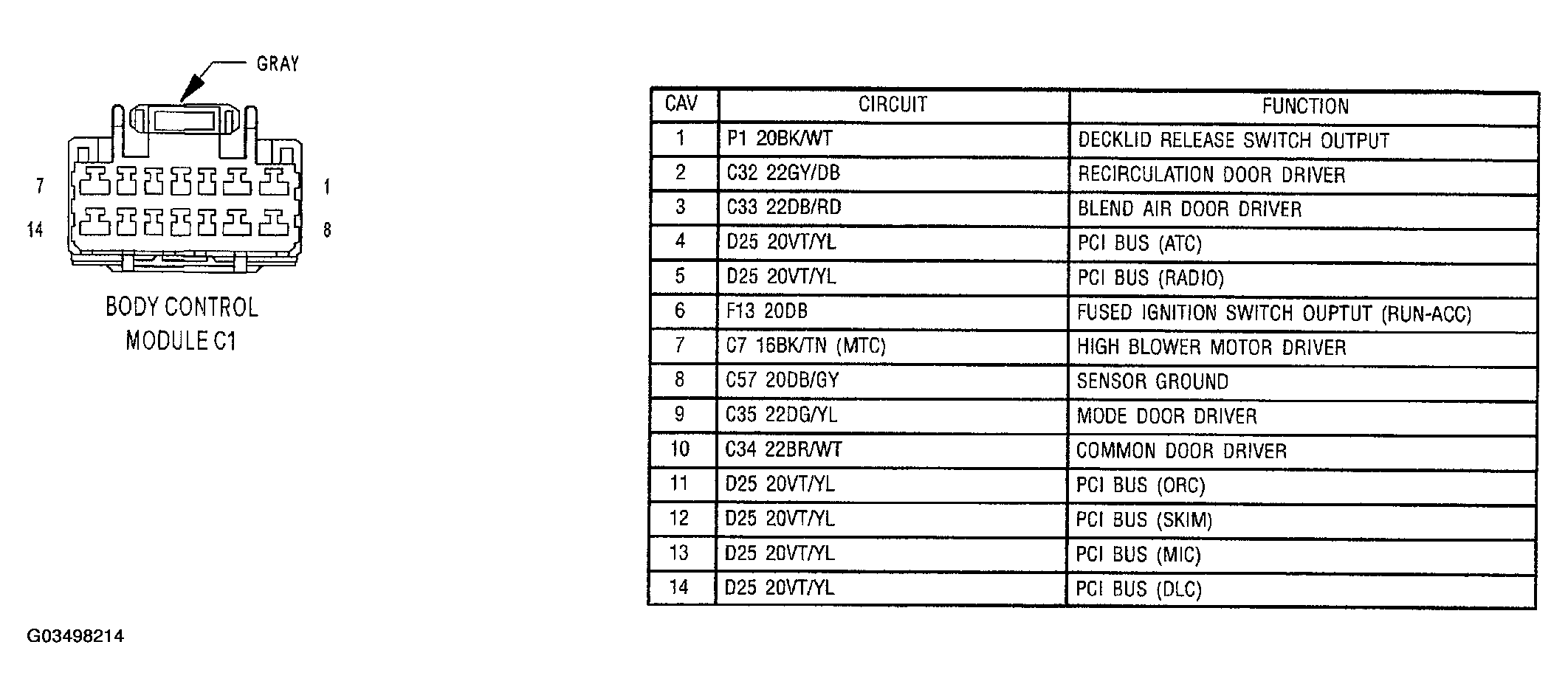

Fig 1: Body Control Module Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
