Memory Set Switch Connector End View
Memory Set Switch Connector End View

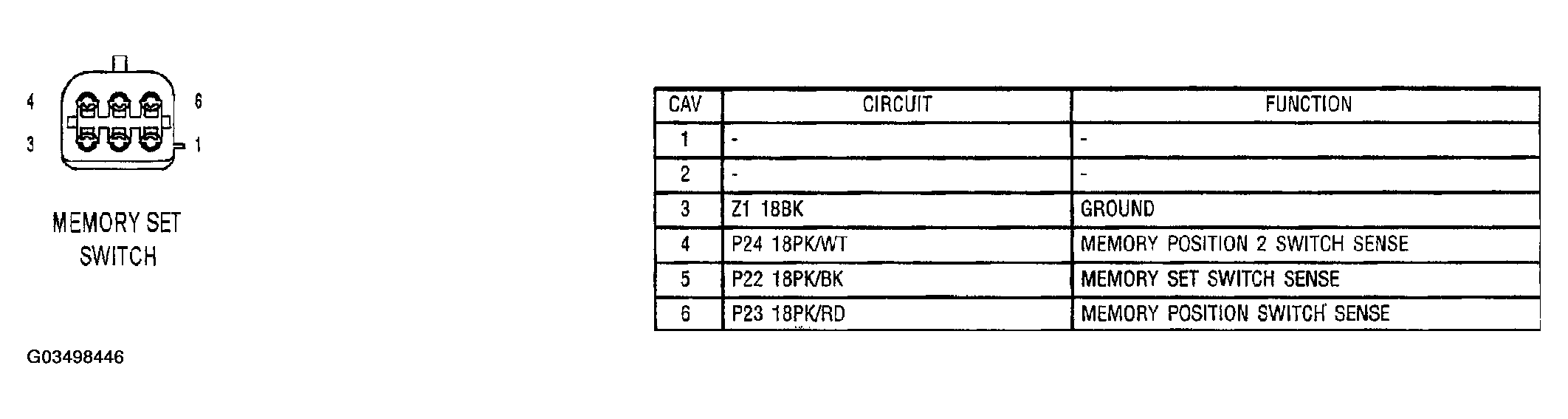

Fig 1: Memory Set Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
