Right Rear Reading/Courtesy Lamp Switch Connector End View
Right Rear Reading/Courtesy Lamp Switch Connector End View

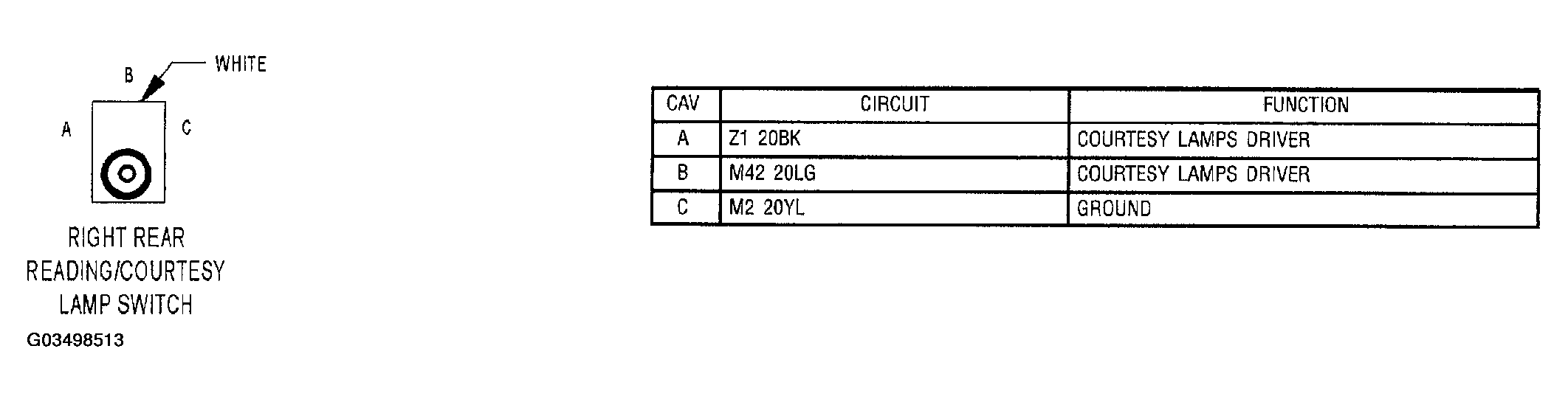

Fig 1: Right Rear Reading/Courtesy Lamp Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
