Compact Disc Changer Connector End View

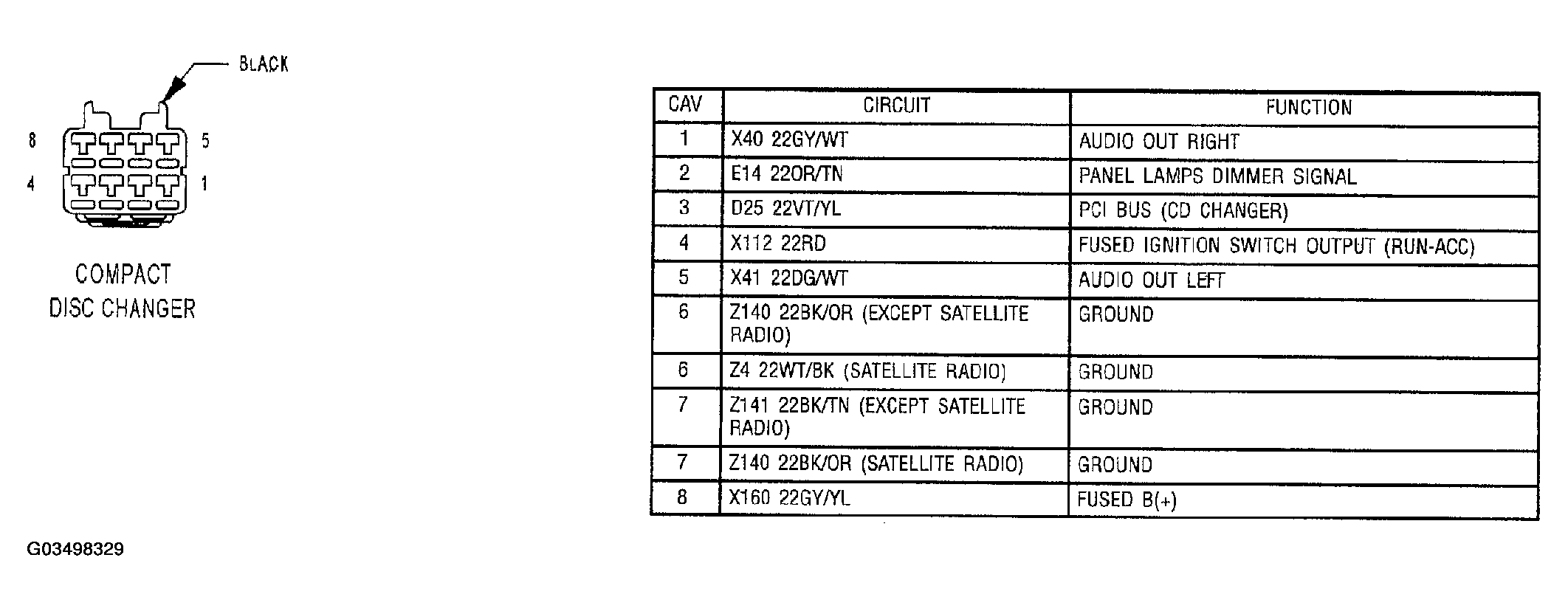

Fig 1: Compact Disc Changer Connector End View
G03498329Courtesy of DAIMLERCHRYSLER CORP.
