Brake Lamp Switch Connector End View
Brake Lamp Switch Connector End View

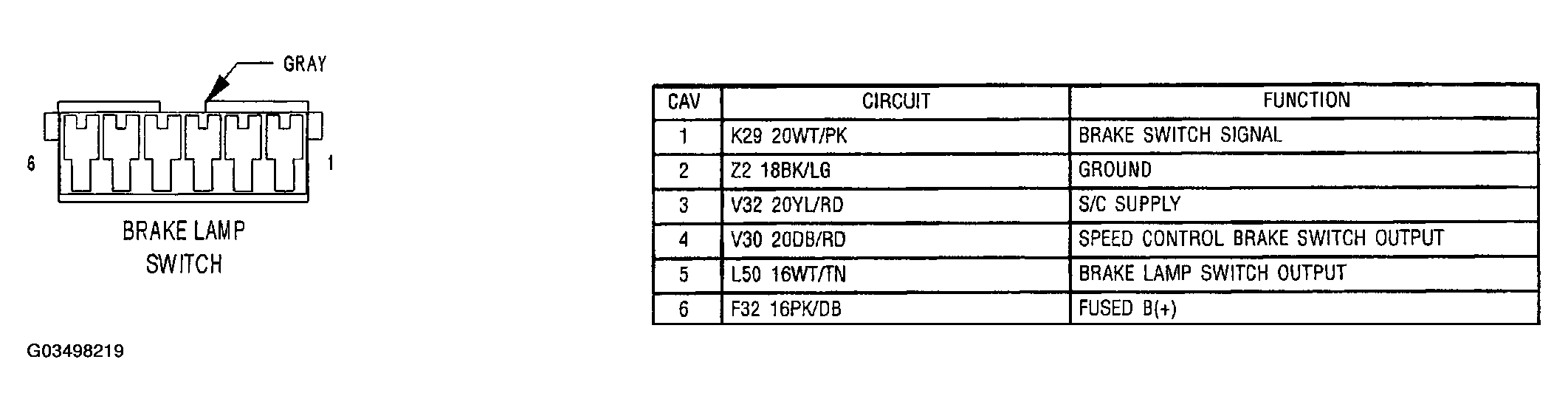

Fig 1: Brake Lamp Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
