Junction Block C11 Connector End View

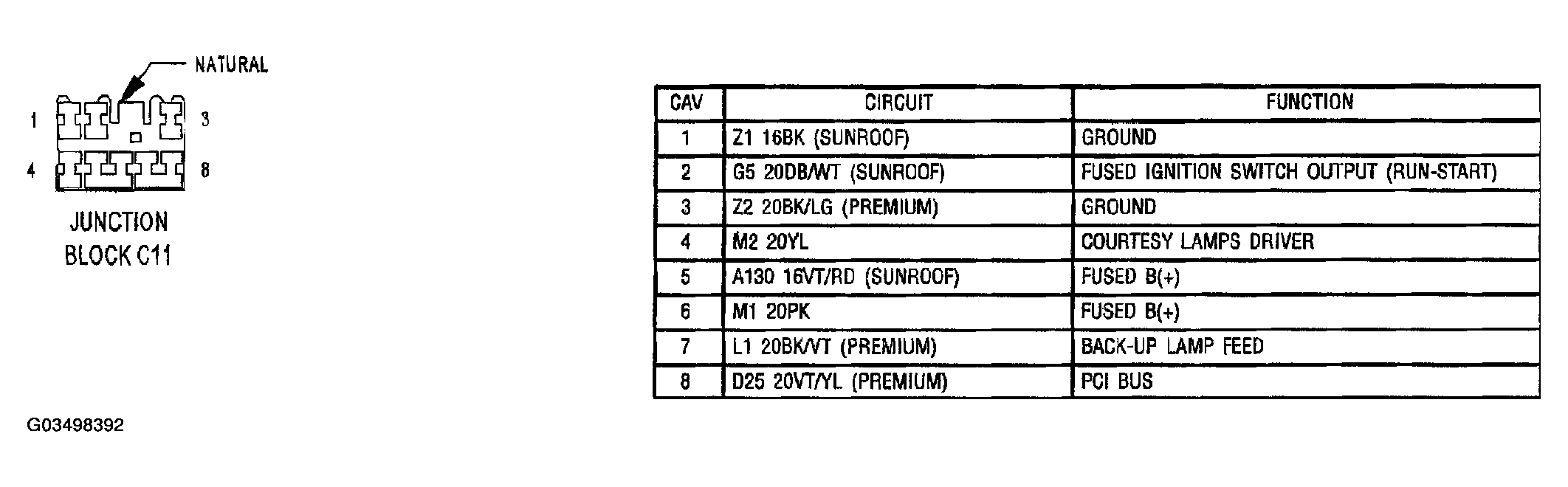

Fig 1: Junction Block Connector End View (C11)
G03498392Courtesy of DAIMLERCHRYSLER CORP.
