Passenger Power Window Switch Connector End View
Passenger Power Window Switch Connector End View

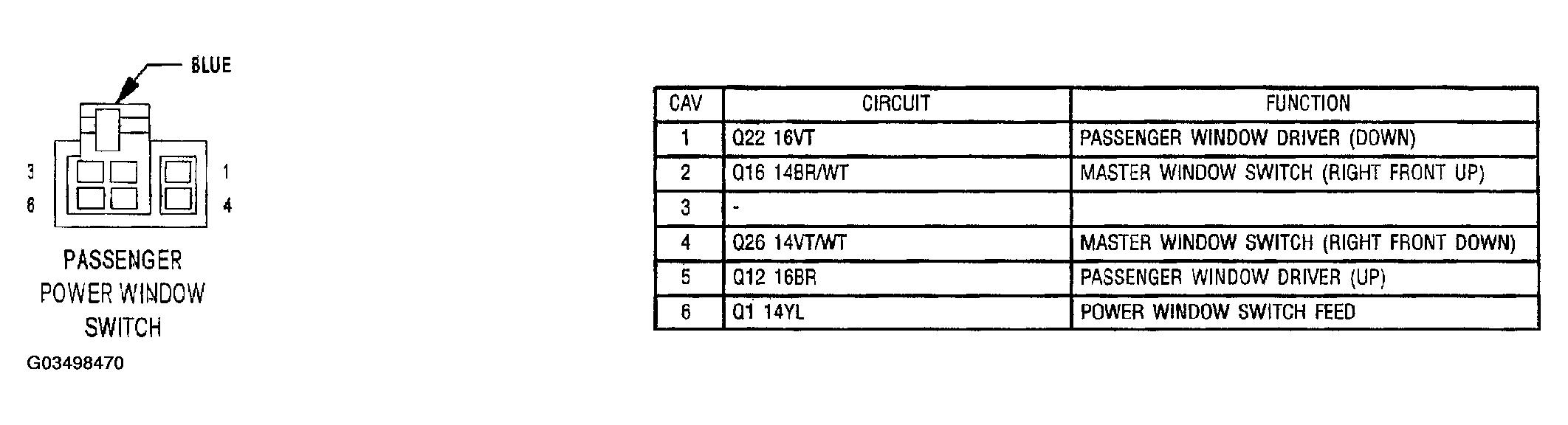

Fig 1: Passenger Power Window Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
