Oxygen Sensor 2/1 Left Bank Up
Oxygen Sensor 2/1 Left Bank Up

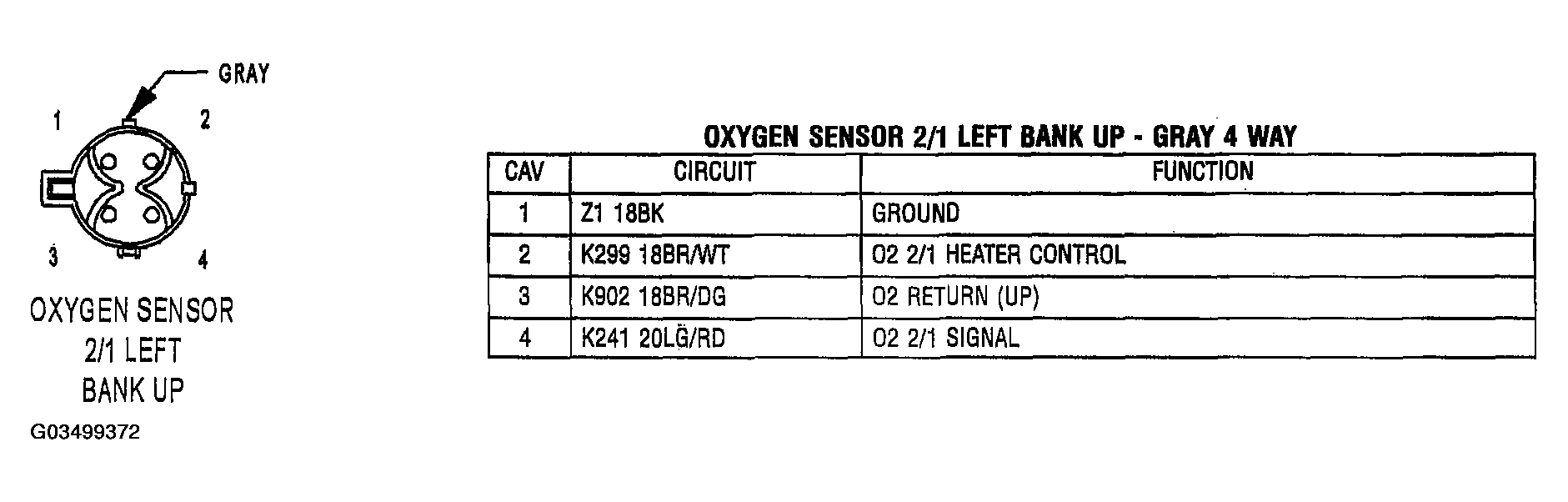

Fig 1: Identifying Oxygen Sensor 2/1 Left Bank Up Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
