Sentry Key Immobilizer Module
Sentry Key Immobilizer Module

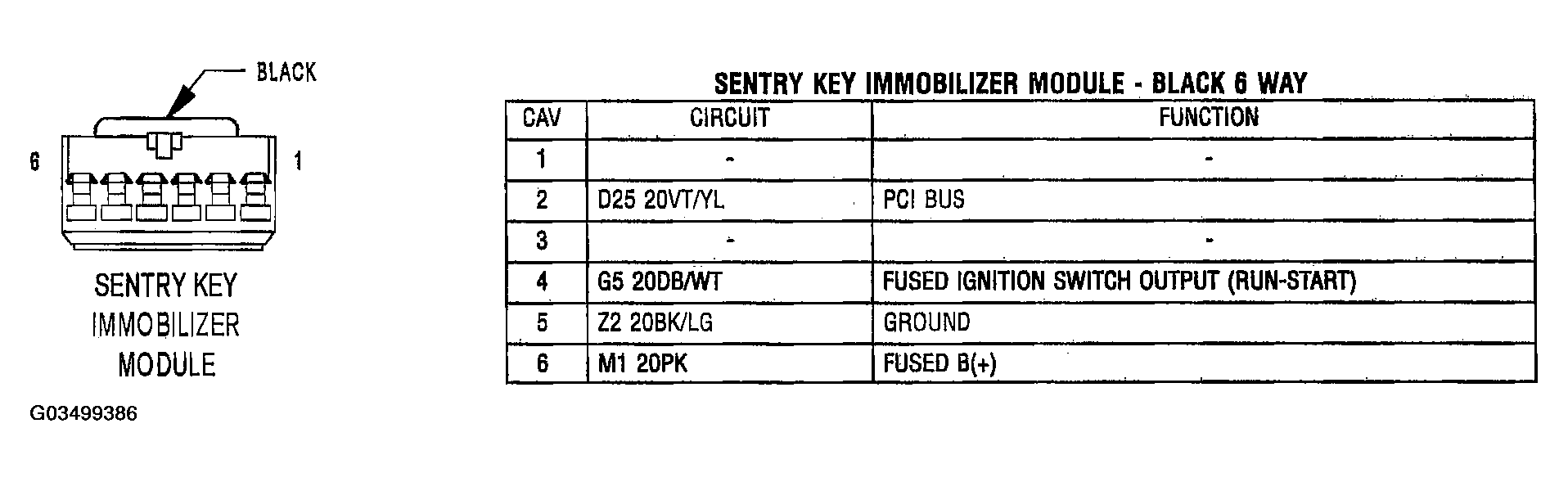

Fig 1: Identifying Sentry Key Immobilizer Module Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
