Solenoid Assembly: Installation

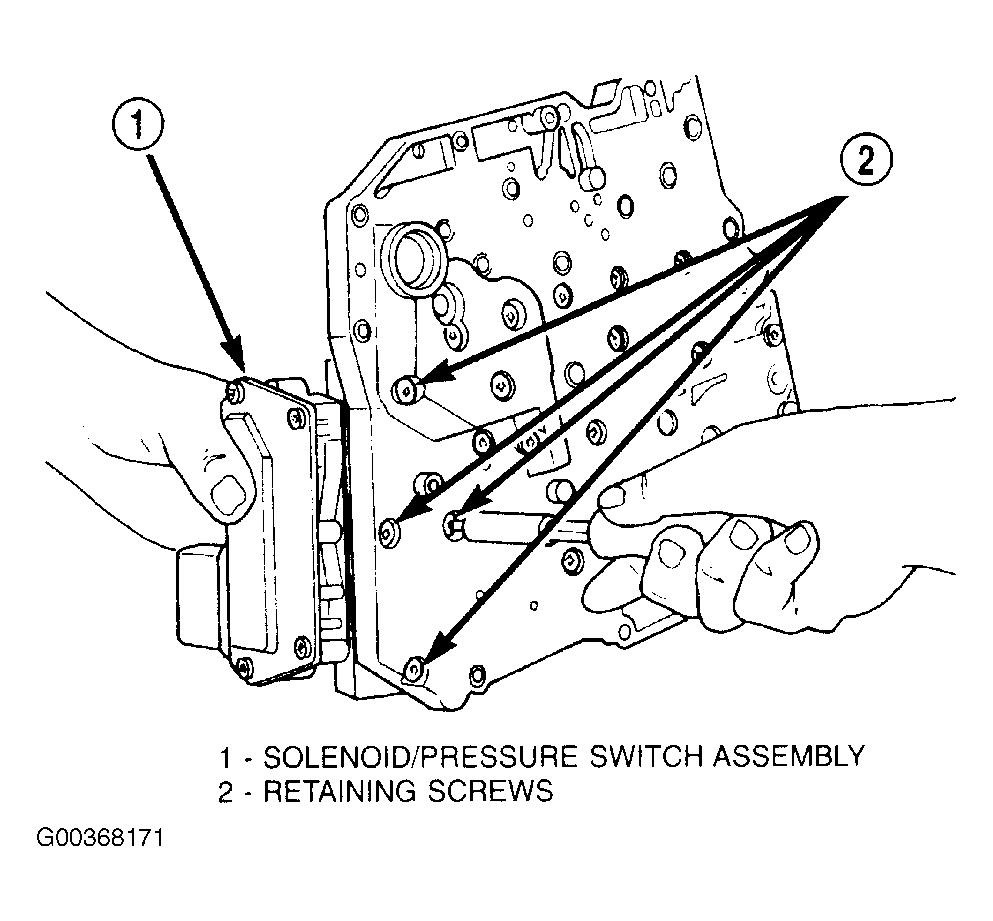

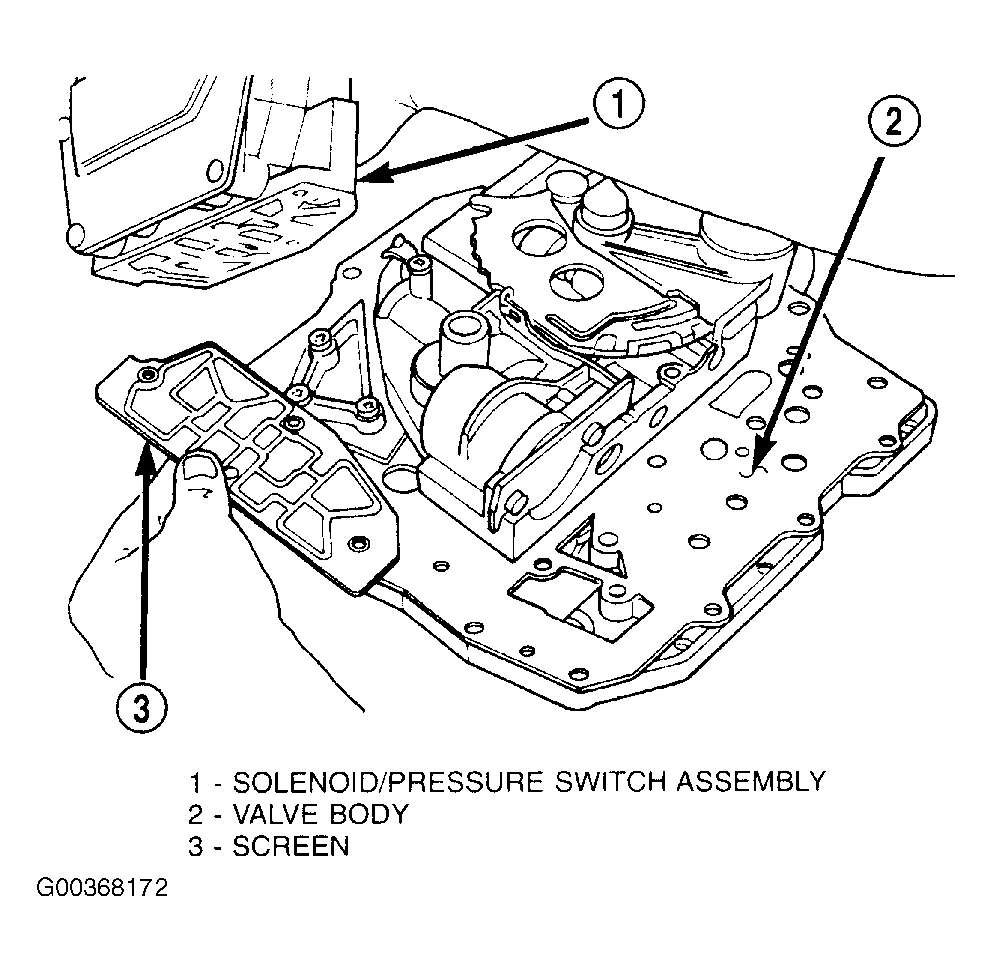

  1. Install Solenoid/Pressure Switch Assembly and screen to the separator and transfer plates. See Figure .
  2. Install and tighten retaining screws to 35 INCH Lbs. (6 N.m). See Figure .
  3. Install valve body. See VALVE BODY  .
