Specifications - Structural Adhesive Locations

INDEX

DESCRIPTION	FIGURE
HOOD - CONCORDE AND 300M	Fig 1
HOOD - INTREPID	Fig 2
FRONT FENDER	Fig 3
ROOF	Fig 4
SUNROOF	Fig 5
DOORS	Fig 6
DECKLID	Fig 7

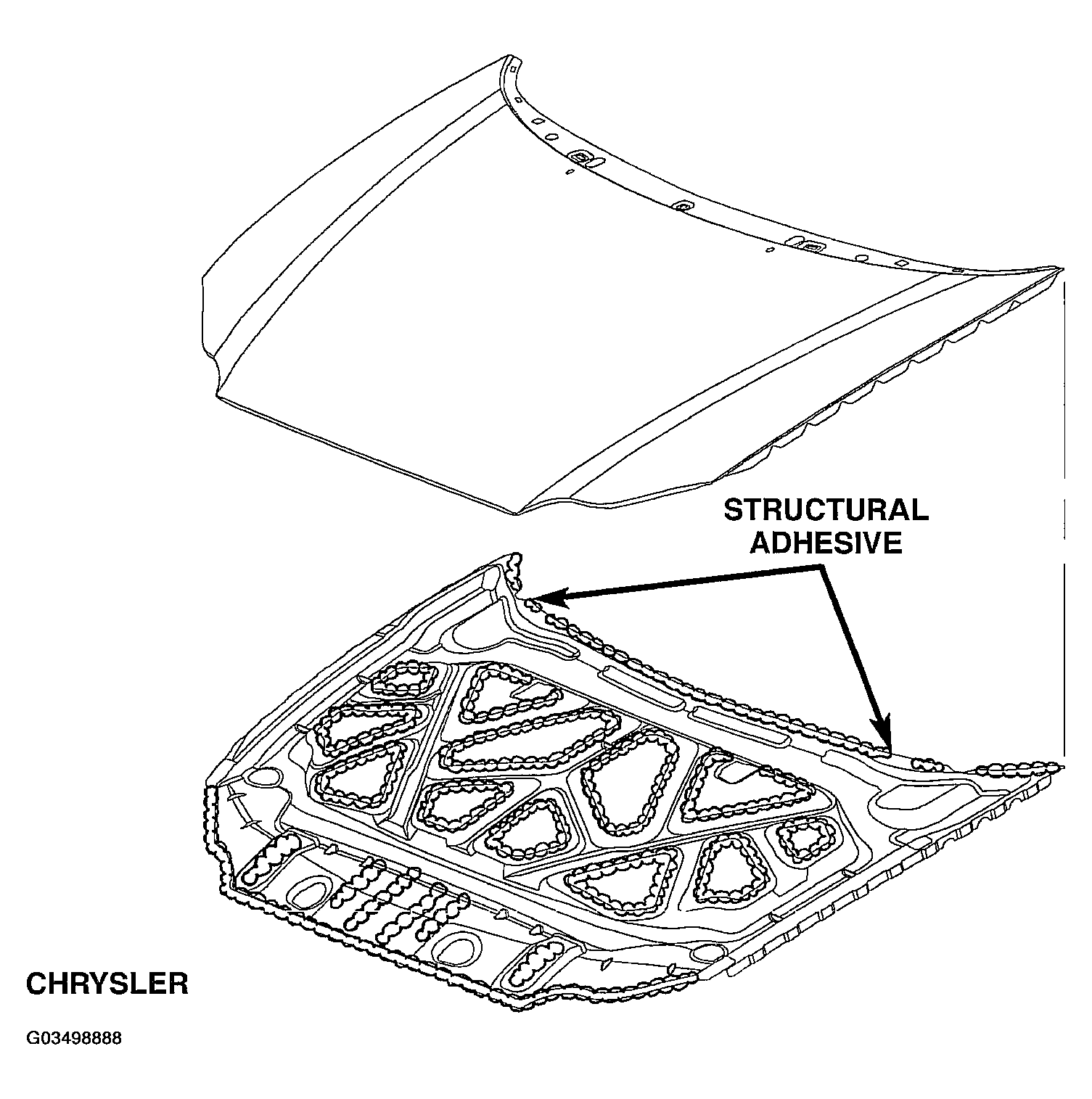

Fig 1: Hood - Concorde And 300M

Courtesy of DAIMLERCHRYSLER CORP.

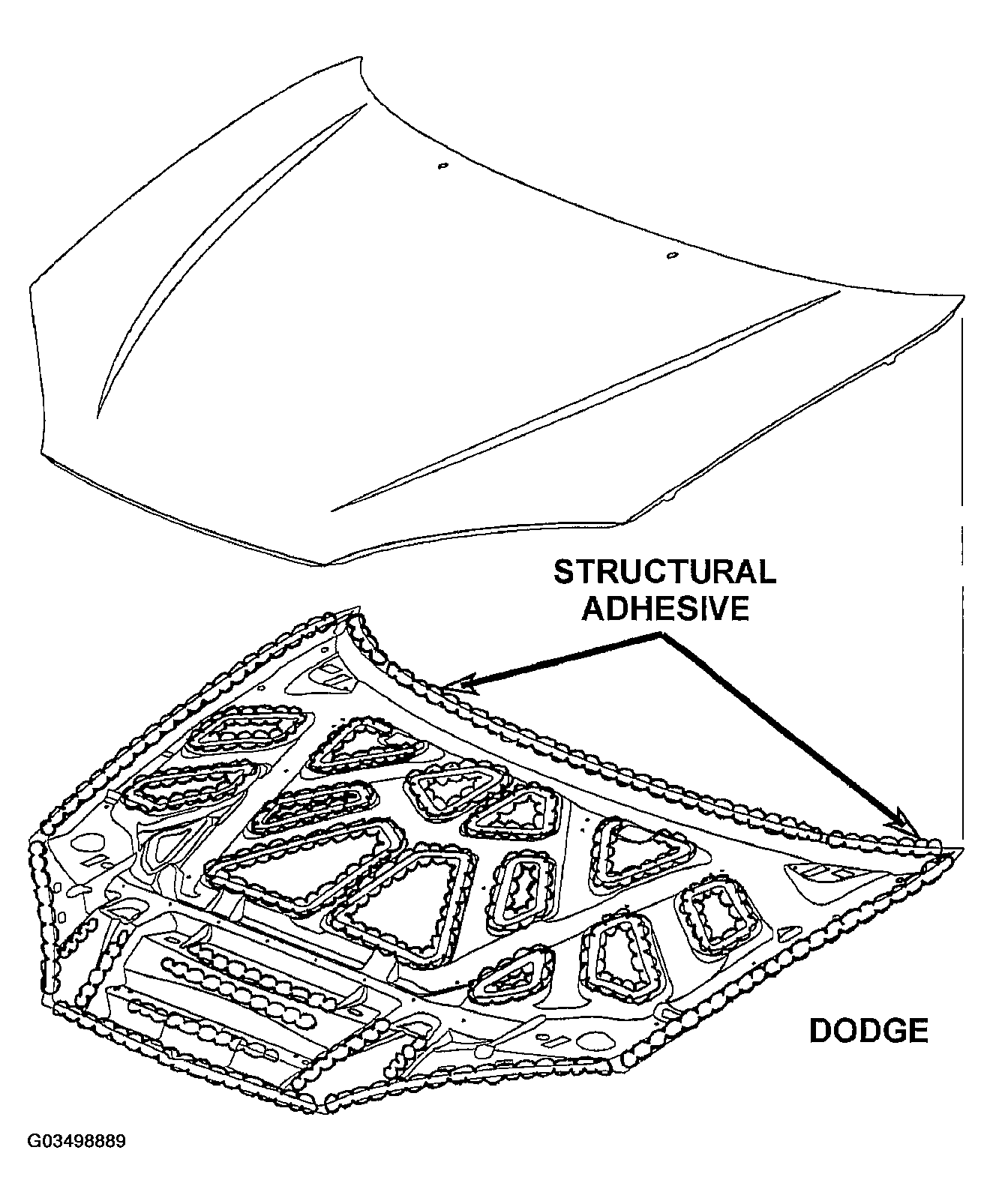

Fig 2: Hood - Intrepid

Courtesy of DAIMLERCHRYSLER CORP.

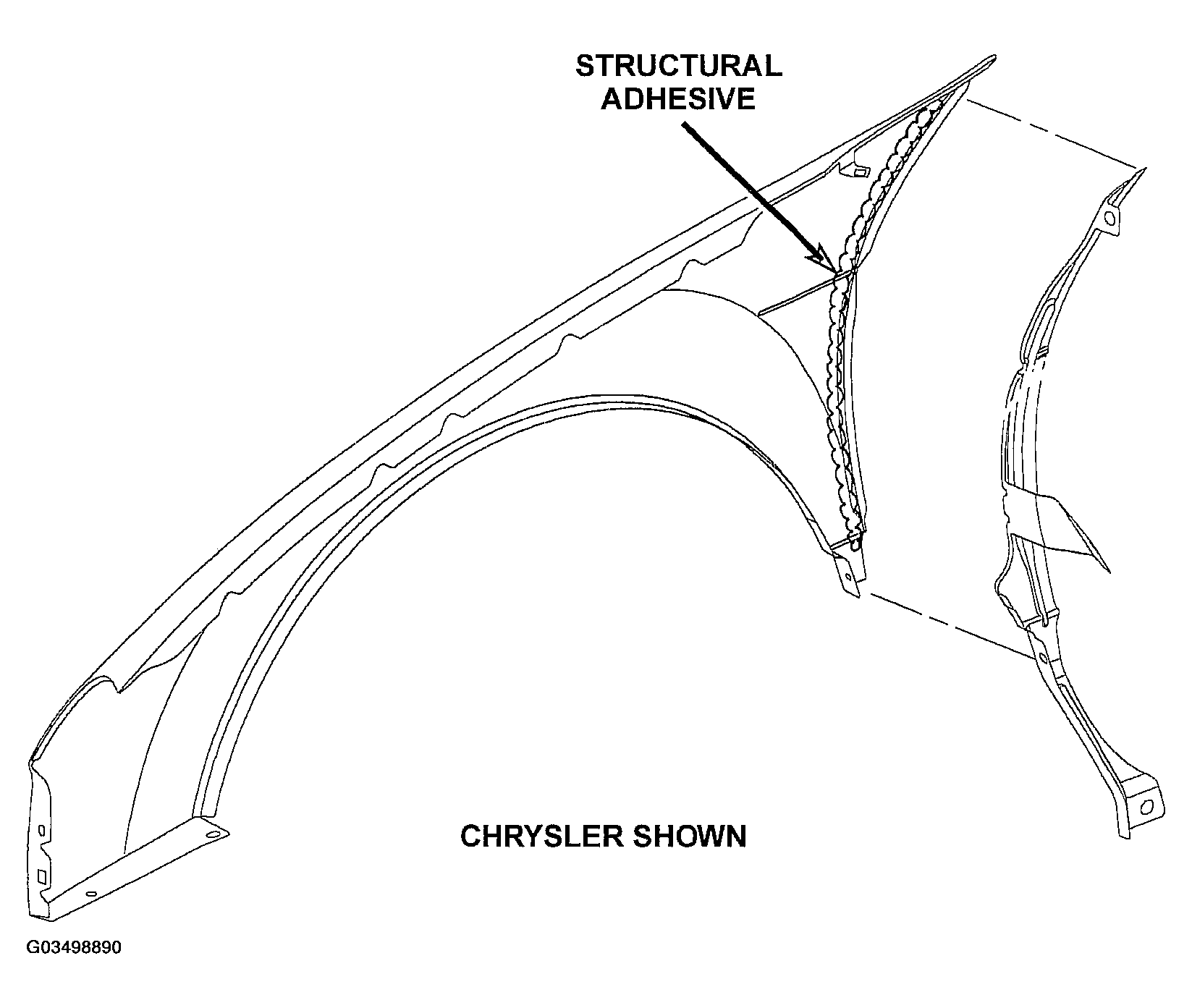

Fig 3: Front Fender

Courtesy of DAIMLERCHRYSLER CORP.

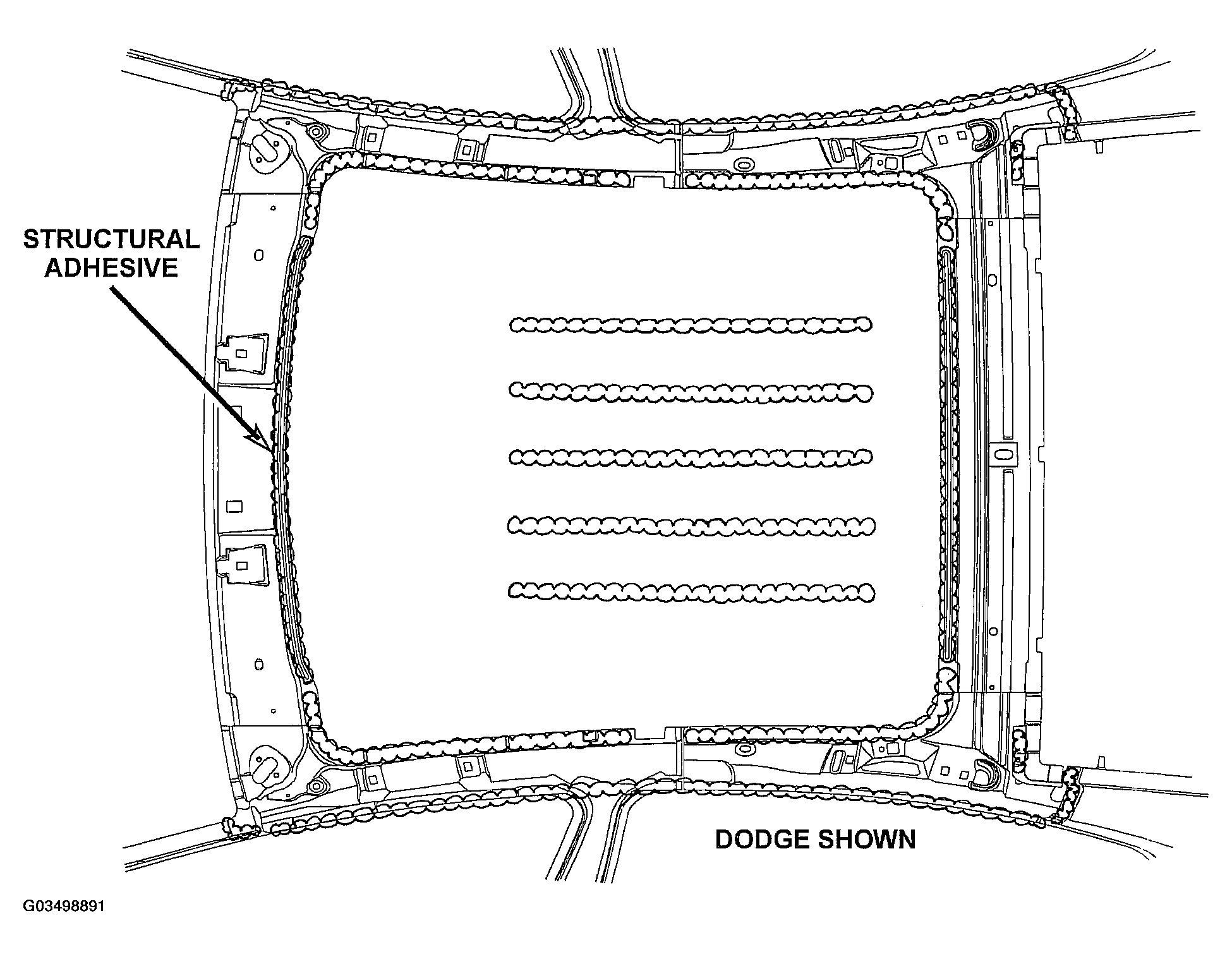

Fig 4: Roof

Courtesy of DAIMLERCHRYSLER CORP.

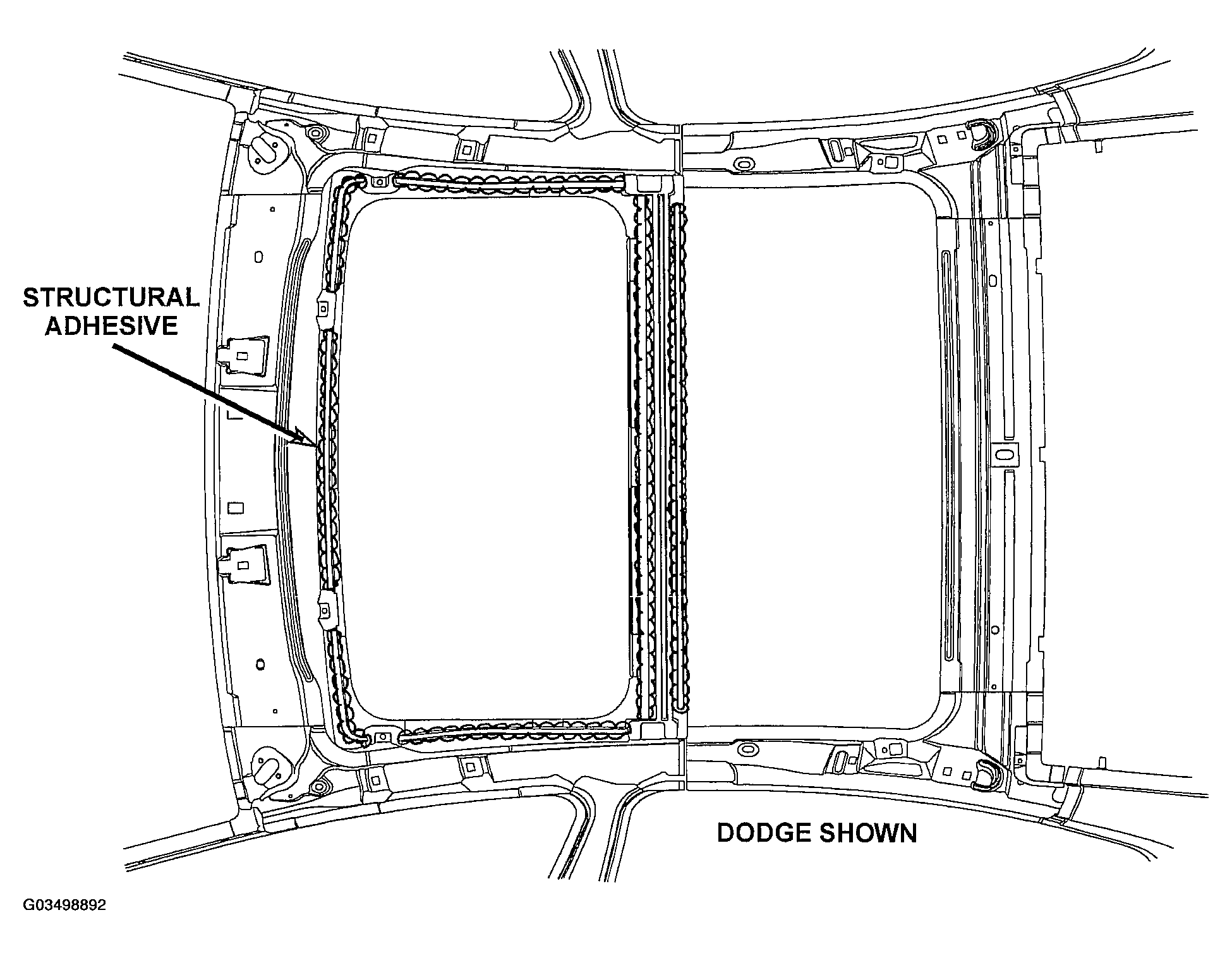

Fig 5: Sunroof

Courtesy of DAIMLERCHRYSLER CORP.

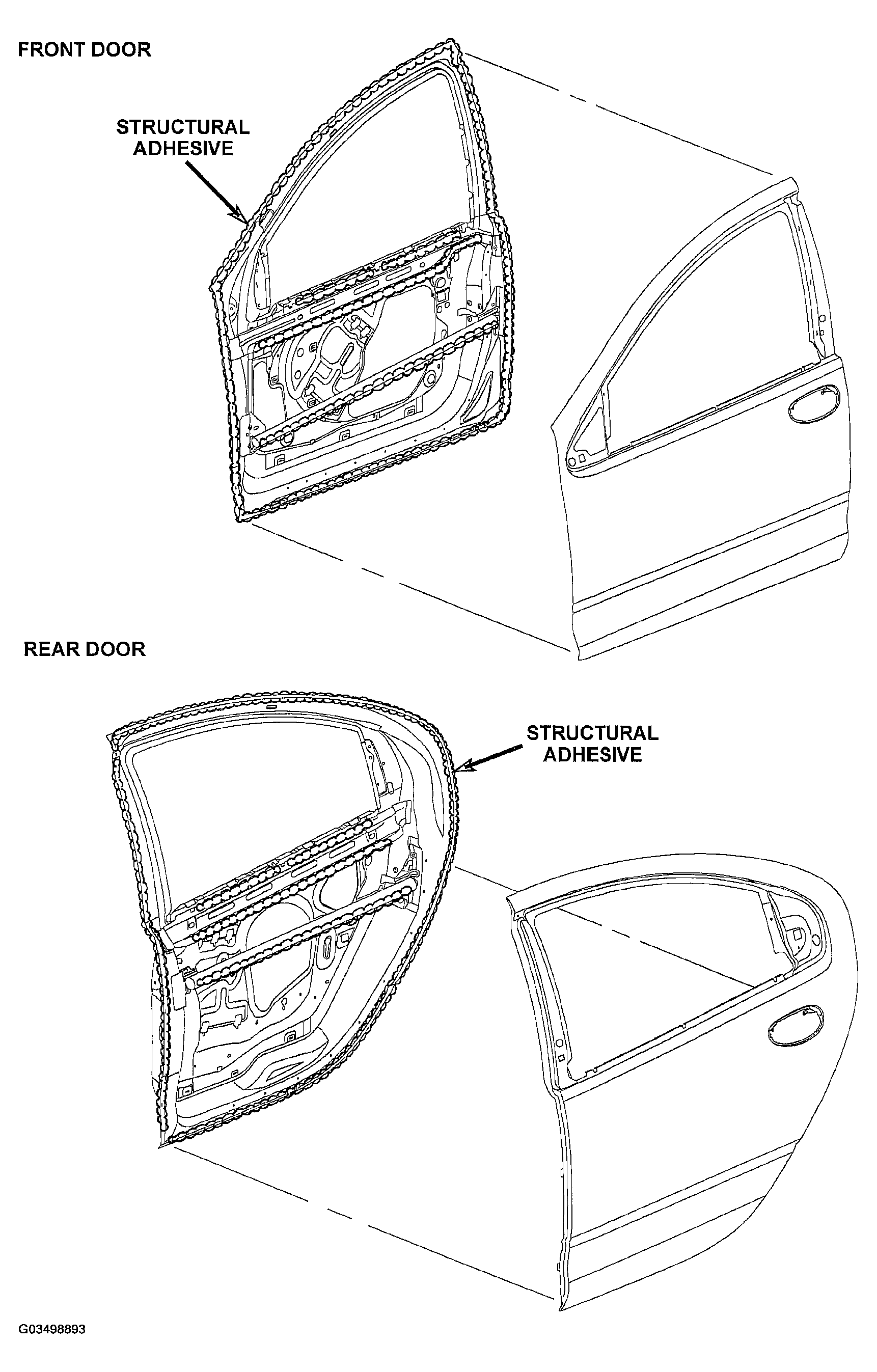

Fig 6: Doors

Courtesy of DAIMLERCHRYSLER CORP.

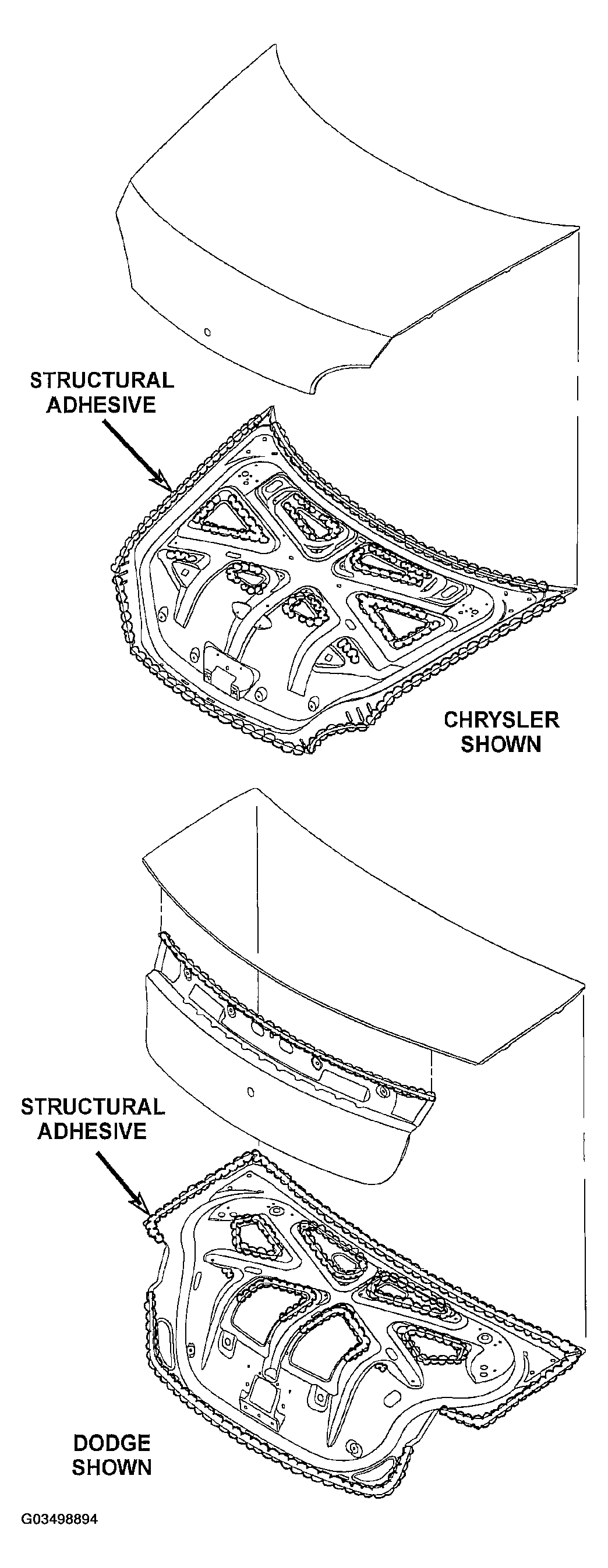

Fig 7: Decklid

Courtesy of DAIMLERCHRYSLER CORP.
