DECKLID Release Solenoid/Ajar Switch Connector End View
DECKLID Release Solenoid/Ajar Switch Connector End View

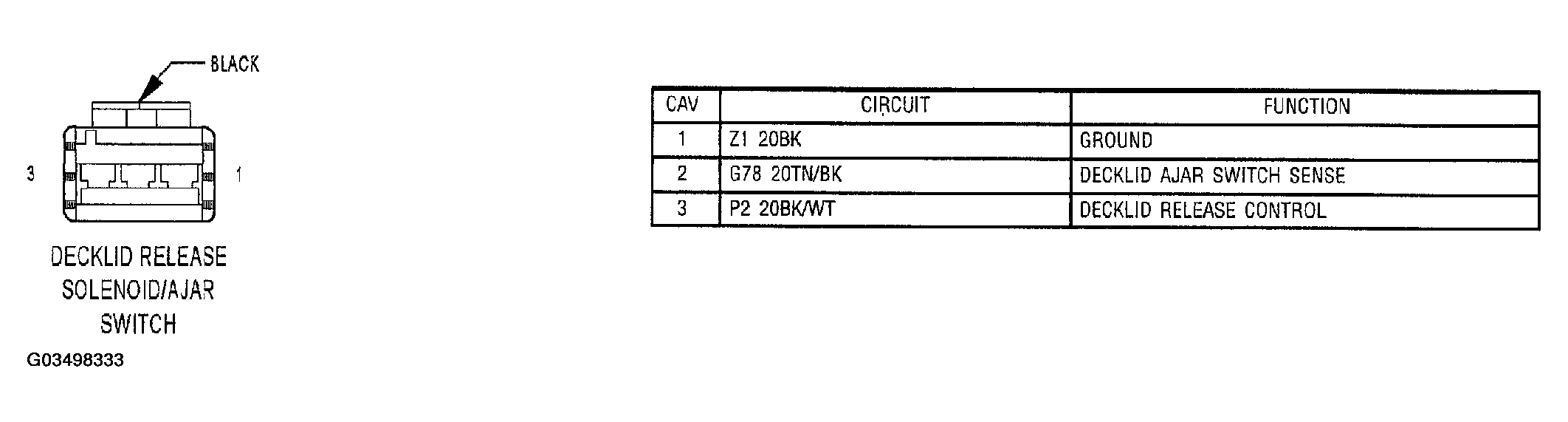

Fig 1: Decklid Release Solenoid/Ajar Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
