Driver Power Seat Switch Connector End View
Driver Power Seat Switch Connector End View

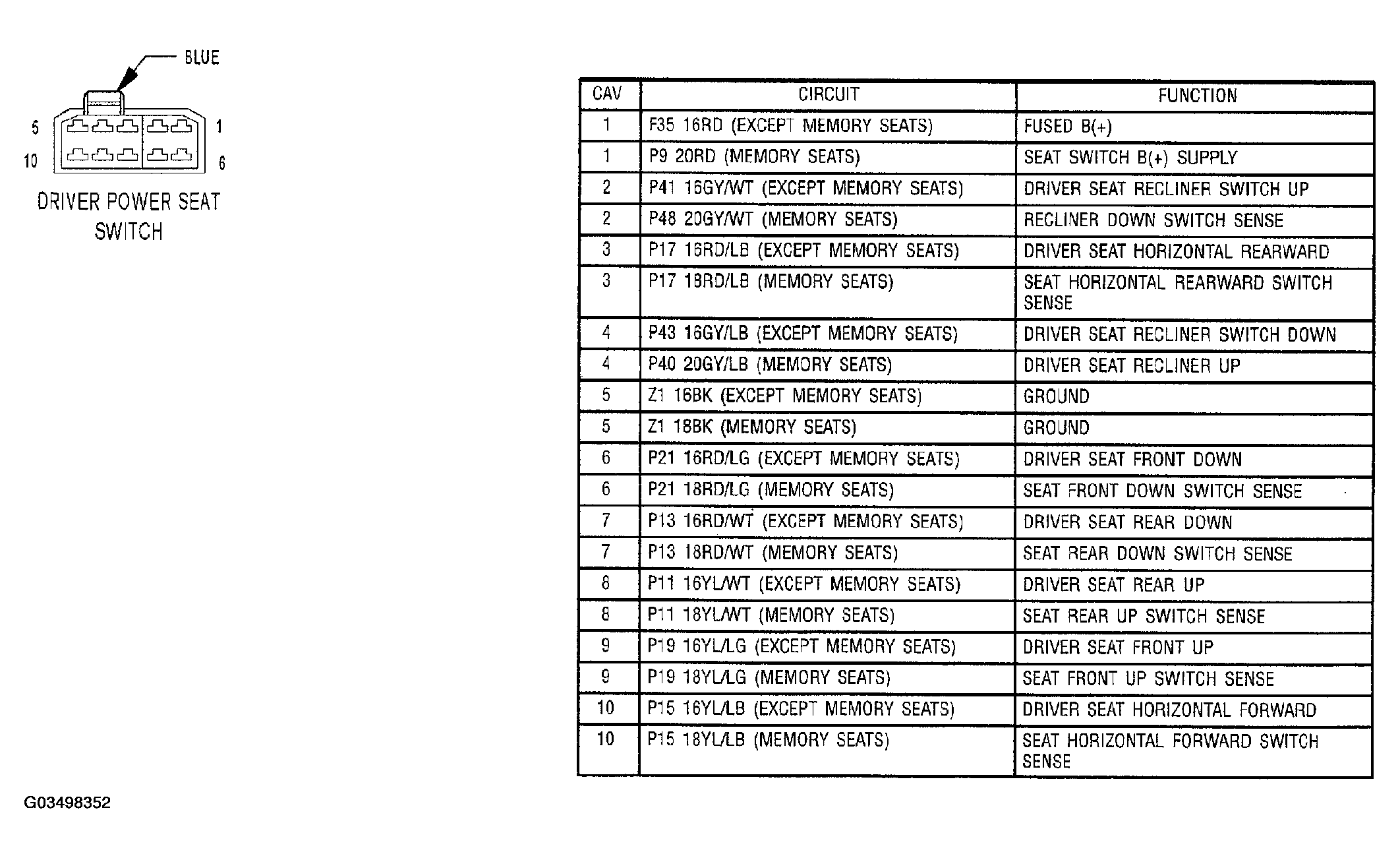

Fig 1: Driver Power Seat Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
