Manual Temperature Control Head C1 Connector End View
Manual Temperature Control Head C1 Connector End View

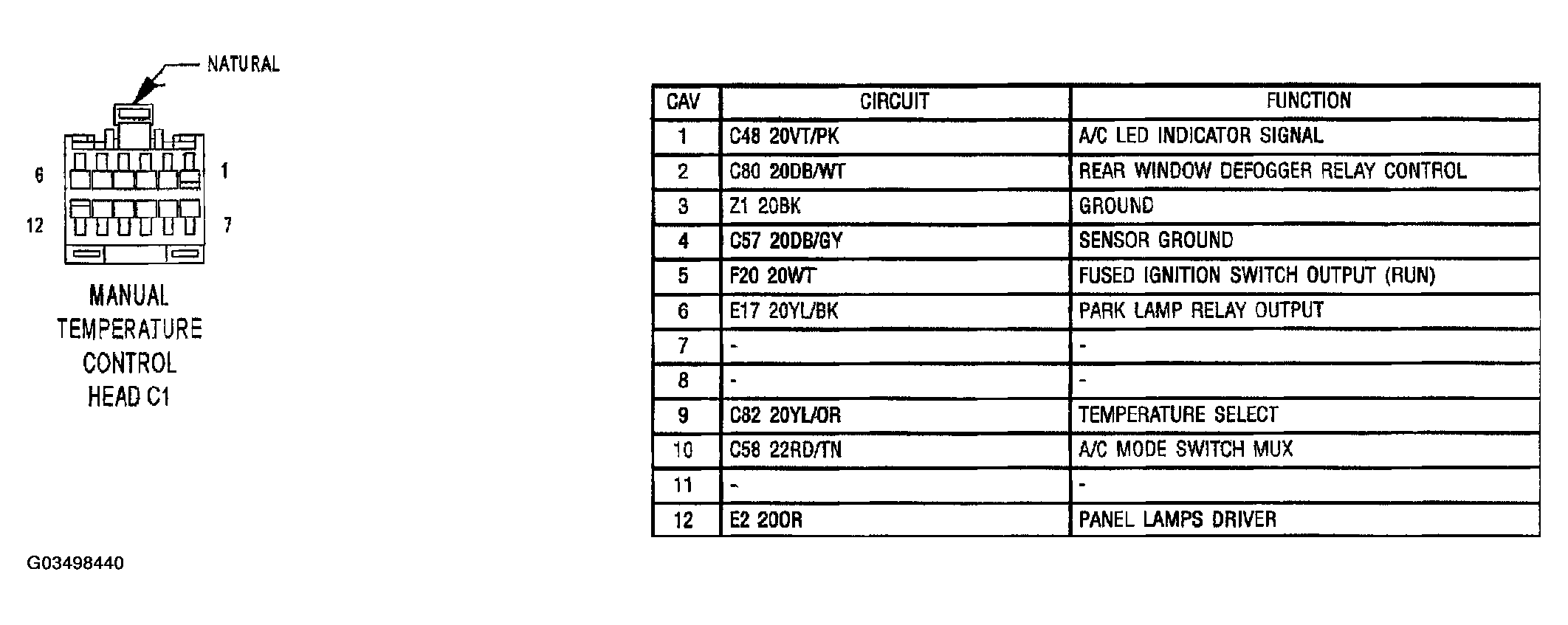

Fig 1: Manual Temperature Control Head Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
