Passenger Power Seat Switch Connector End View
Passenger Power Seat Switch Connector End View

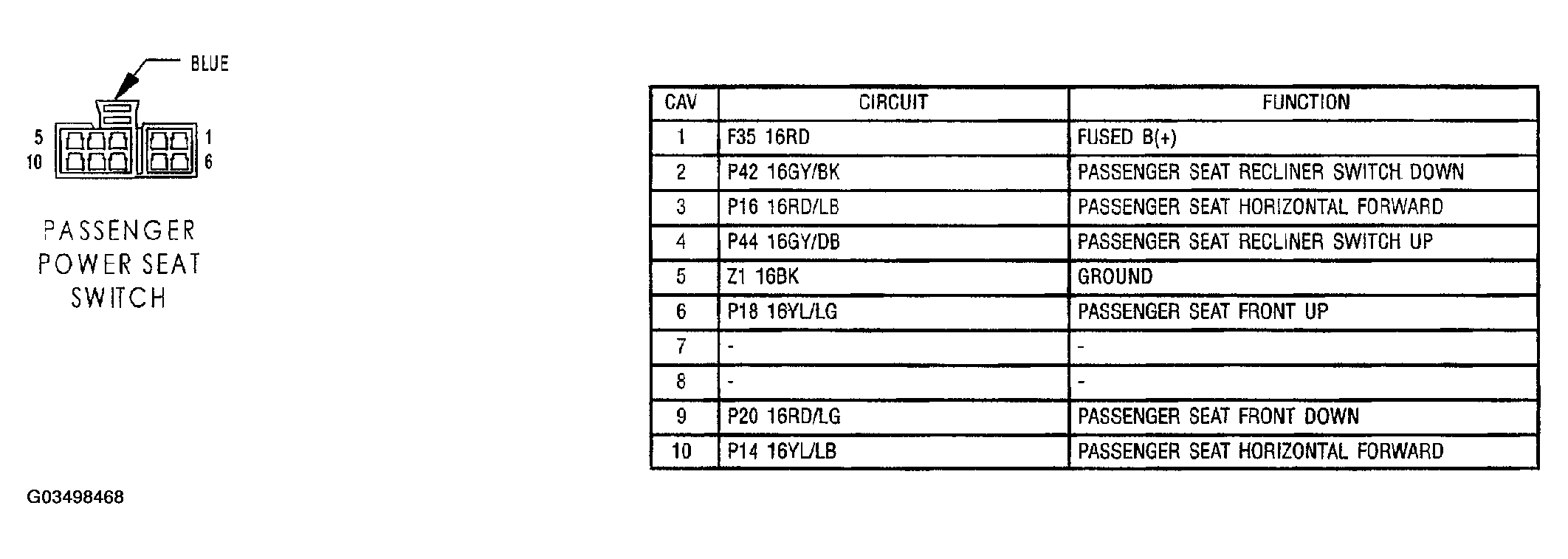

Fig 1: Passenger Power Seat Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
