Rear Window Defogger/Antenna Module Connector End View
Rear Window Defogger/Antenna Module Connector End View

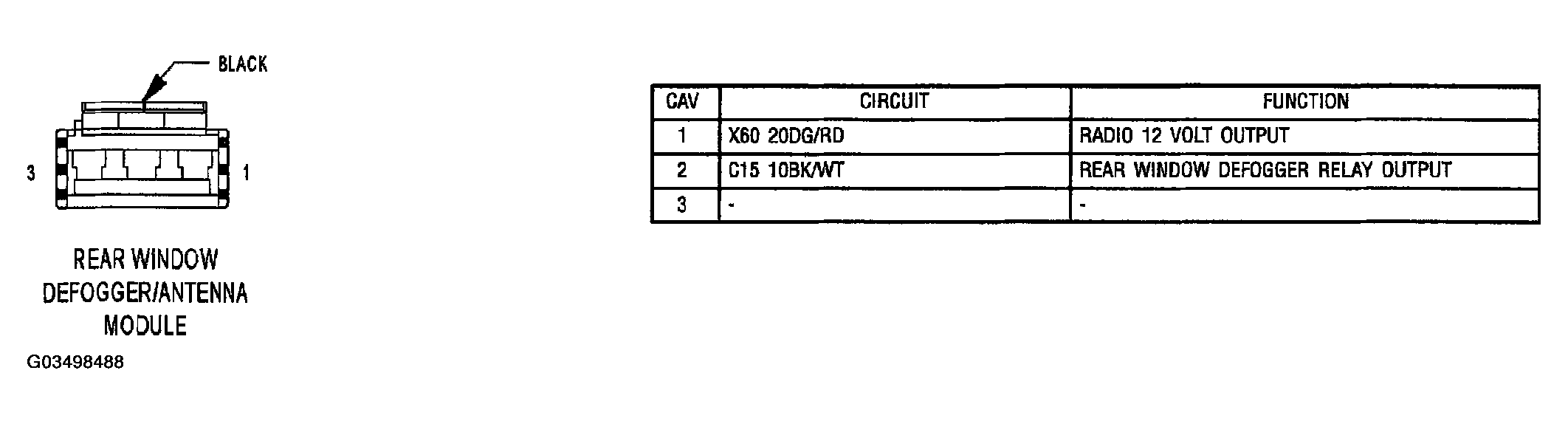

Fig 1: Rear Window Defogger/Antenna Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
