Throttle Position Sensor (2.7L) Connector End View
Throttle Position Sensor (2.7L) Connector End View

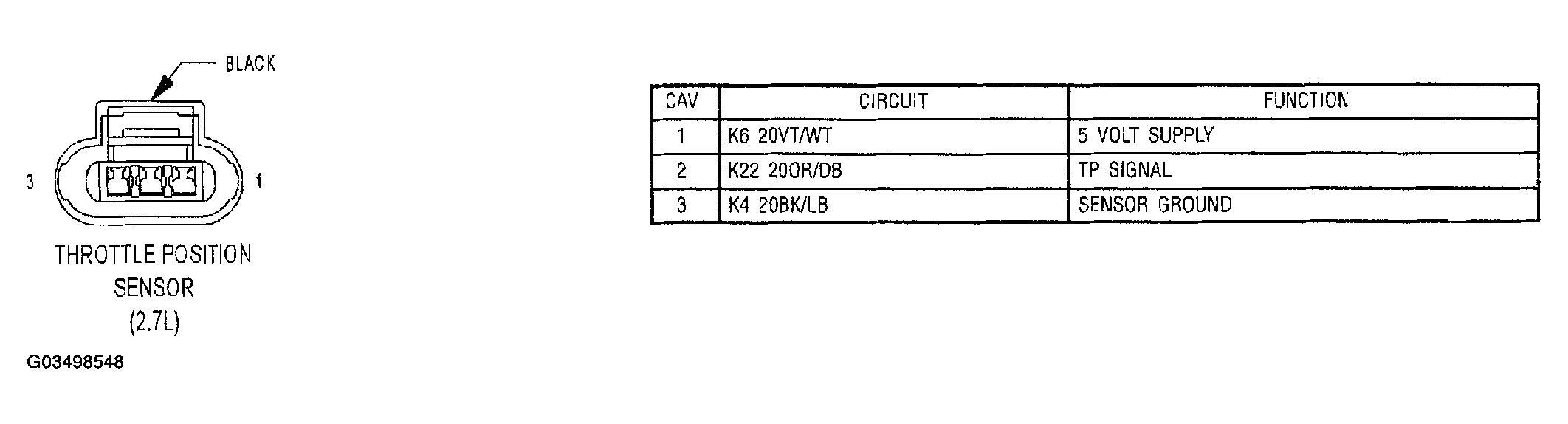

Fig 1: Throttle Position Sensor (2.7L) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
