A/C Pressure Transducer Connector End View
A/C Pressure Transducer Connector End View

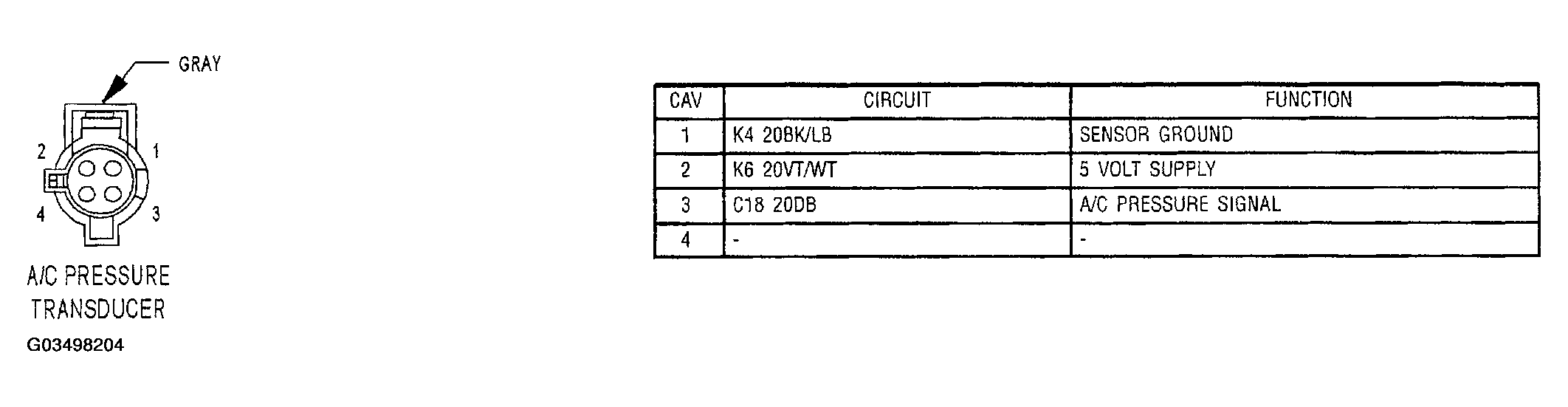

Fig 1: A/C Pressure Transducer Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
